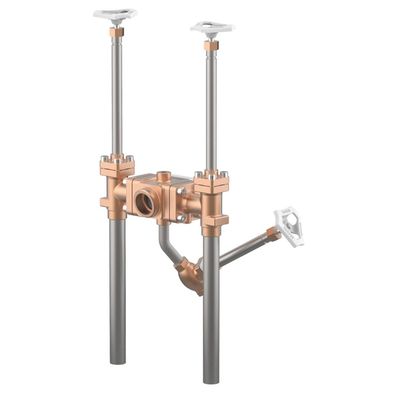

HEROSE -Model 07003 -Cryogenic Filling Module with Check Valve Function

The Type 07003 Cryogenic Filling Module is designed for use with liquid and gaseous media, including LNG, and it operates effectively in a temperature range from -196°C (77K) to +120°C (393K). The module's housing and flanged upper part are constructed from bronze, ensuring durability and resistance in cryogenic applications. Featuring a check valve function at the filling connection and a live-loaded spindle seal, it is oil and grease-free to accommodate oxygen use. It integrates internally threaded connections conforming to ISO 7-Rc standard and includes two stainless steel pipes soldered according to ASTM A312 for outflow. The check valve assembly employs a metal-to-metal sealing mechanism classified under leakage rate D as per EN12266-1. Special configurations, such as stainless steel pipes soldered according to ISO 1127 and integrated filters, are available upon request, enhancing its versatility. The robust materials used are classified under both DIN EN and ASTM standards, meeting stringent technical specifications.
