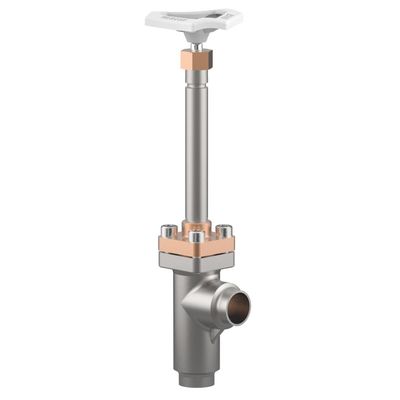

HEROSE -Model 01322 -Cryogenic Right Angle Valve for Low-Temperature Applications

The Type 01322 is a cryogenic right angle valve designed for low-temperature applications, specifically suitable for air gases, vapors, and cryogenic liquefied gases, including LNG. Constructed with a stainless steel body and a bronze upper part, it features a 'live loaded' spindle seal and is oil and grease-free for oxygen service. Various specifications are offered, which comply with ISO 1127 or ASTM A312 standards, including welding ends for stainless steel pipes. It can operate effectively in temperatures ranging from -196°C to +120°C. The valve's architecture includes a PTFE/electrocarbon seal, aluminum alloy handwheel, graphite/PTFE stuffing box packing, and other quality materials such as DIN EN and ASTM-compliant stainless steel and bronze components. Optional custom designs include extended heights up to 900mm, throttle cones, and additional pipe wall thicknesses available upon request. The valve is a viable solution for industries requiring strict temperature control and robust, reliable isolation capabilities.
