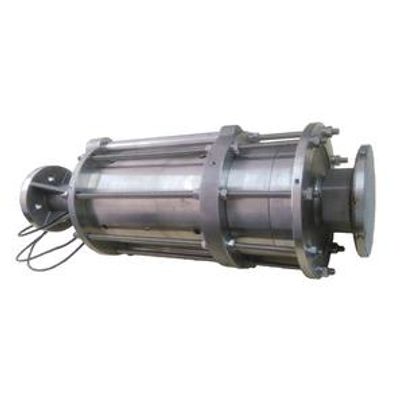

Cryogenic Submersible Pump
Cryogenic Submersible pump are used in applications where low temperature liquids must be transported. They are very commonly found in the production and transport of liquid nature gas (LNG), liquid Nitrogen, liquid Helium, and liquid Oxygen.
Most popular related searches
Characteristic
- Design with hydraulic modular by CFD flow field analysis
- Pump test with Liquid nitrogen(-196℃)is available
- High efficiency permanent magnetic motor
- Completely submerged into liquid with little noise
- No shaft seal, motor and wire isolated with liquid by closed system
- Safety by eliminating the possibility of the flammable gas exposed to air
- Submerged motor and impeller connected with the same shaft without coupling and centering
- Equalizing mechanism design makes the bearing with long service life
- Impeller and bearing by self-lubricated
- Capacity up to 150m³/h
- Head up to 450m
- Minimum Net position Suction Head 1.8m
- Application LNG terminal ,cryogenic industry,LNG automobile filling station,LNG marine,LNG storage tank
