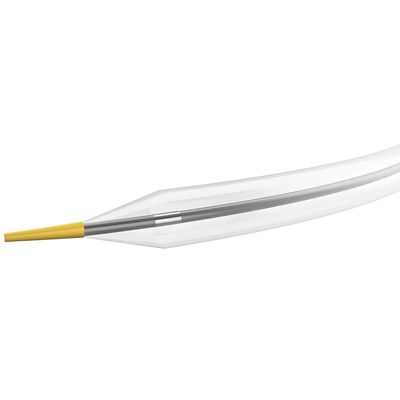

BrosMed - Model Alveo HP - CTO Balloon Dilatation Catheter
With 0.75 mm in diameter, Alveo HP is the smallest high pressure CTO balloon catheter in the world Specifically designed for crossing complex lesions and Chronic Total Occlusions (CTO) as well as tracking tortuous anatomy.
Most popular related searches
balloon catheter
balloon dilation catheter
guide wire
catheter
dilatation catheter
pressure catheter
dilation balloon
anatomy
cardiovascular
- Ideal for CTO lesion
- Complex Calcified lesions
- Proprietary balanced distal tip technology
- Proprietary distal laser welding technology eliminates hardness and maintains distal tip flexibility
- No transition in the distal laser welding resulting in smallest crossing profile
- New balloon material design
- Enhanced shaft design
- Balloon Diameter(mm):
- 0.75,1.0,1.25,1.5,1.75,2.0
- Balloon Length(mm):
- 5,8,10,12,15,20,25,30
- Nominal Pressure:
- 10 atm
- Guiding Catheter Compatibility:
- 5F Compatible
- Coating:
- SliderTM Hydrophilic external surface coating from tip to adjacent guide wire port;
- EelTM Hydrophobic Coating inside guide wire lumen
