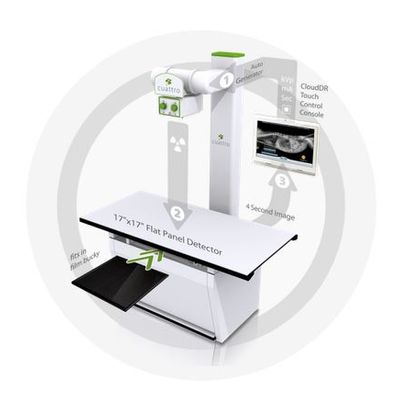

Cuattro - Model DR HD - High Definition Digital Radiography System
From Digital Imaging
A smarter direction in small animal digital radiography.
-
Most popular related searches
Product Details
- Exceptional Images
Delivering detail, resolution, and contrast image quality that is visibly better than Standard Definition systems.
- Industry Leading Quality
From the leading designers in veterinary digital radiography for more than a decade.
- An Incredible Improvement Over Film or CR
Avoid the high cost, retakes, over-exposure, processing failures and storage related to outdated technology.
- Easier Workflow and Better Images
Shorten exam times while getting superior diagnostic images.
- Increased Profitability
Do more exams, order more views, consult with superior images, and diagnose patients better.
- Cloud Based Storage with Cloud DR
Save studies to the cloud for immediate access and ability to share with anyone, anywhere.
Options
- Direct Deposition Cesium
- 100 micron pixel size
- HD pixel density. 18 Million (17×17)
- HD pixel density. 15 Million (14×17)
- Full Size Image Area (14×17 – 17×17)
- Resolution of at least 5 lp/mm
- 16 Bit A/D 16 Bit Grayscale Native
- 16 Bit Multi-Frequency Tuning
CloudDR™ HD Added Benefits
- Automatic Exposure Detection
- Cassette Sized Form Factor
- Windows Embedded – 64 bit OS
- Multi-Touch User Interface
- Cloud Based PACS Connectivity
- Comprehensive Warranty w/ Cloud Archival
- Software Upgrades and Updates
- 24/7 Live Technical Support
Specs & Technology
Sensor
- Panel – Single substrate amorphous silicon active TFT/diode array
- Scintillator – Direct deposition CsI:Tl
- Pixel Matrix – 3556 × 4320
- Pixel Pitch – 100 μm
Electronics
- Amplifiers – Low noise ASICs with user selectable gains
- ADC – 16 bit
- Image Transfer Time Wired – 500 ms; Wireless: 3000 ms
- On Board Memory – 1 GB DDR3, 4 GB SDHC card
Mechanical
- Size – ISO 4090 for 35 cm × 43 cm (14” × 17”) cassette size
- Active Area – True 355 mm × 432 mm
- External Dimensions – 384 mm (w) × 460 mm (l) × 15 mm (h)
- Weight – 3.8 kg (8.4 lbs)
- Housing Carbon – fiber front & back
Communications
- Status Display – OLED display with WiFi, battery, and sensor indicators
- Wireless Data I/F – 802.11n WiFi standard
- Wired Data I/F – GigE via optional power & communication tether
- X-ray I/F – Integrated X-ray trigger control Automatic Exposure Detection
Imaging Performance
- Limiting Resolution – 5 cy/mm
- Typical MTF – 70% (1 cy/mm), 40% (2 cy/mm), 15% (4 cy/mm) for RQA5
- Typical DQE – 75% (0 cy/mm), 60% (1 cy/mm), 40% (3 cy/mm) for RQA5
Environmental
- Temperature: 10 – 35 °C operating
- Humidity: 30 – 70 % RH operating (non-condensing)
Power
- Battery – Rechargeable battery, 53.3 Wh
- Battery Charger – External two bay charger 100-240 V AC 50/60 Hz
- Interface & Power Unit – Optional XRpad IPU with external power supply 100-240 V AC, GigE, and X-ray I/F
14×17” Wireless HD Detector Specifications: Sensor
- Panel – Single substrate amorphous silicon active TFT/diode array
- Scintillator – Direct deposition CsI:Tl
- Pixel Matrix – 3556 × 4320
- Pixel Pitch – 100 μm
Electronics
- Amplifiers – Low noise ASICs with user selectable gains
- ADC – 16 bit
- Image Transfer Time Wired – 500 ms; Wireless: 3000 ms
- On Board Memory – 1 GB DDR3, 4 GB SDHC card
Mechanical
- Size – ISO 4090 for 35 cm × 43 cm (14” × 17”) cassette size
- Active Area – True 355 mm × 432 mm
- External Dimensions – 384 mm (w) × 460 mm (l) × 15 mm (h)
- Weight – 3.8 kg (8.4 lbs)
- Housing Carbon – fiber front & back
Communications
- Status Display – OLED display with WiFi, battery, and sensor indicators
- Wireless Data I/F – 802.11n WiFi standard
- Wired Data I/F – GigE via optional power & communication tether
- X-ray I/F – Integrated X-ray trigger control Automatic Exposure Detection
Imaging Performance
- Limiting Resolution – 5 cy/mm
- Typical MTF – 70% (1 cy/mm), 40% (2 cy/mm), 15% (4 cy/mm) for RQA5
- Typical DQE – 75% (0 cy/mm), 60% (1 cy/mm), 40% (3 cy/mm) for RQA5
Environmental
- Temperature – 10 – 35 °C operating
- Humidity – 30 – 70 % RH operating (non-condensing)
Power
- Battery – Rechargeable battery, 53.3 Wh
- Battery Charger – External two bay charger 100-240 V AC 50/60 Hz
- Interface & Power Unit – Optional XRpad IPU with external power supply 100-240 V AC, GigE, and X-ray I/F
