DCC-MRI Oxygen Sampling System

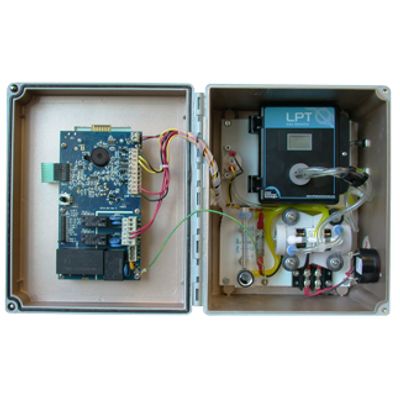

The DCC-MRI is a self-contained Oxygen (O2) monitoring system developed for Magnetic Resonance Imaging (MRI) room applications for hospitals and clinics. Due to the strong magnetic field inside the MRI room, electronic equipment does not operate properly when mounted inside the room. The DCC-MRI system is designed to be installed outside of the MRI room with a sample tubing running from the monitoring system to the sampled environment. The DCC-MRI comes with an O2 sensor (measurement range 0 - 25% volume), a flow detector, a sample draw pump and an internal adjustable flow meter. Features include two 4 - 20 mA outputs, one alarm level line voltage relay with field configurable time delays and trigger levels, a blocked flow alarm indicating a dirty filter or clogged tubing, a side mounted audible buzzer and an LCD digital display with LED indicators for channel alarm status and fault conditions.Most popular related searches
