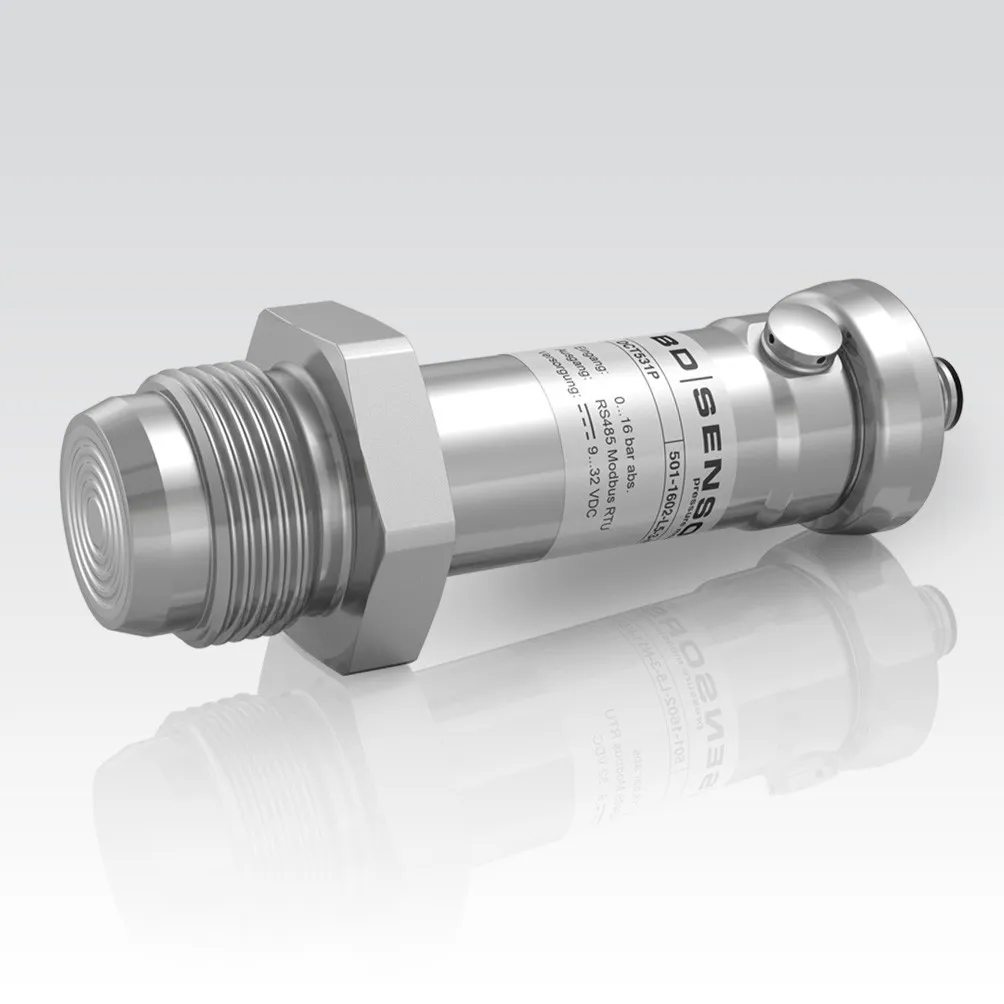

DCT 531P -Model DCT 531P -DCT 531P
FromBD|SENSORS GmbH
The DCT 531P was designed for use in the food / beverage and pharmaceutical industry. The compact design with hygienic versions guarantees an outstanding performance in terms of accuracy, thermal behaviour and long term stability.The integrated RS485 interface is characterized by a robust and reliable data transmission that works failure-free even over long distances.
Additionally, the modular construction concept of the device allows to combine different electrical and mechanical connections.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar
- accuracy: 0.25% FSO
- output signal: RS485 with Modbus RTU protocol
- CIP / SIP cleaning up to 150 °C
- diaphragm with low surface roughness
- reset function
- ingress protection IP 67 / IP 69
Optional Features:
- different process connections
- cooling element for media temperatures up to 300 °C
