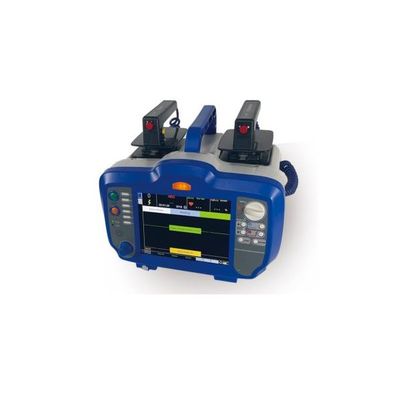

Render -Model Xpress -Defibrillator

Defibrillator

Waveform: Biphasic (BTE)

• Charge Time: Less than 7 seconds with a new fully charged battery.
• Energy Display: Monitor display indicates both selected and delivered energy.
• Charge Prompt Type: Voice and visual prompts.
• Electrode Impedance Measurement Range: 0-250 ohms.

ECG Monitoring

• Patient Connection: 3-lead ECG cable or 5-lead ECG cable paddles.
• Lead Selection: Displayed on monitor paddles I II III AVR AVL AVF V.
• ECG Size: 0.25 0.5 1 1.5 2 4 cm/mV display on monitor.
• Heart Rate: 20-300BPM.
• Heart Rate Alarm: On/Off displayed on monitor user-selectable.
• Smart Alarms: Beeper/voice prompts indicate shock able rhythm.

Battery

• Type: Rechargeable Ni-MH battery 12V.
• Operating time: For a new fully charged battery: 60 defibrillator discharges at maximum energy or 3 hours minimum of continuous ECG monitoring. Additional parameters will effect operating time with different functions.

SpO2 Module (Options):

• Measurement Range: 30~100% ±2% between 80%~90% others ±5%
• Alarm Range: User set high limit and low limit.
• Alarm Accuracy: ±10% within setting values.
• Alarm time Accuracy: less than 12 sec.
• 1-Meditech Pulse Oximeter
• 2-Nellcor Pulse Oximeter

EtCO2 Module (Options):

• CO2 Range 0 to 13%(0-98.8mmHg@BTPS)
• CO2 Accuracy <5.0% CO2 (at BTPS) ± 3 mmHg
•                         >5.0% CO2 (at BTPS) < 10% of reading
• Breath Rate 3~60 BPM
• Measurement Accuracy ±1BPM

Pacemaker (Options):

• Type: VVI
• Pulse Type: rectangular,constant current
• Pulse Amplitude: 0 to 180 mA ± 10% or 5 mA (whichever is greater).
• Pacing Rate: Variable from 30 ppm to 180 ppm ±1.5% (increments or decrements by a value of 2 ppm)
• Multi-Function Electrode: (MFE) Pads: multipurpose defibrillation/pacing electrodes
• Pause: Pacing pulse frequency reduced by a factor of 4 when activated
• Refractory Period: NC(VVI demand do not have this specification)
• Pulse Width: (20+ 1.5 ms)
• Output Protection: Fully defibrillator protected and isolated

Recorder

• Paper: 50mm thermal.
• Speed: 12.5mm/sec 25mm/sec 50mm/sec. User-selectable 6-second delay.
• Printing Method: High-resolution thermal print head.
• Print-out Modes: Manual or automatic user-configurable.
• On/Off Control: Front panel and paddle.
• Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.

AED Mode

• AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
• Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
• Charge Control: Control on device front panel press key on paddle.
• Prompts: Voice and visual prompts.

Manual Mode

• Energy Selection: Selectable at 2 5 7 10 20 30 50 70 100 150 200 300 360 joules.
• Synchronized Mode: Synchronizes defibrillator pulse to patient`s
• R-wave. "SYNC" message displayed on monitor.
