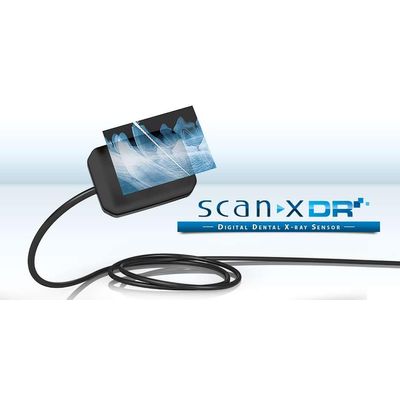

Allpro -Model ScanX DR -Dental Imaging X-ray Sensor
The modern CMOS technology of the ScanX DR Sensor ensures the fast transmission of high-resolution images. The new scintillator layer reduces scatter and concentrates the energy to positively influence the best image quality.
Superior Image Quality for better diagnostics
Exceptional diagnostic image quality helps you detect pathologies under the gum that are not visible during a routine exam without radiographs.
Hygiene Management
Hygiene cover and wipe-disinfected to prevent cross contamination.
Discover the benefits of Direct Radiography // ScanX DR VET dental X-ray sensor
Digital Radiography (DR) provides real-time high-resolution imaging after being exposed with your x-ray generator.
The high-resolution latent image is automatically displayed on your computer screen in a matter of seconds.
The optimized digital images can be shared directly with other users and easily archived.
- SIMPLEST WORKFLOW
- INSTANTANEOUS IMAGE ACQUISITION
- HIGHEST IMAGE QUALITY
- HIGHEST RESOLUTION AT 20 LP/MM
- Dimensions (H x W x D): 6.3 x 33.1 x 43 mm
- Active sensor surface: 36 x 26 mm
- Pixel size: 19 x 19 μm
- Number of pixels: 1,368 x 1,896 = 2,593,728
- Theoretical resolution: 26.3 LP/mm
- Effective resolution: 20.0 LP/mm
- Greyscale: 16 bit (65,536)
- Cable length: 2.5 m
- PC connection: USB 2.0, USB 3.0 compatible
- USB extension: 1 m (standard)
- Service life: > 400,000 images *
- Warranty: 2 Years
