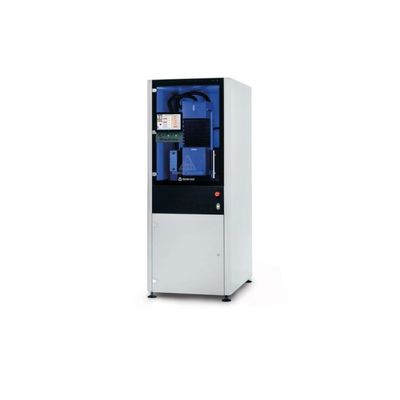

Tecno-Gaz - Model G5 - Dental Machine

G5 is the universal machine developed specifically for the dental sector, made up of many relatively small laboratories, it is the universal machine. It can mill any artifact in any material. Thanks to the 5 continuous axes it can produce customized abutments, perform undercuts, give excellent surface finishes and reduce manual finishing times.

• Accuracy and durability over time
• Linear optical scales on the three XYZ axes
• 20 automatic change tools
• Standard tool magazine with 20 positions with the possibility of managing duplicates
• Jager spindle 2.1 kW maximum power at 50,000 rpm
• Dimensions: 106 x 76 x 104 cm - 800 Kg

Works that can be done with G5

Crowns, abutments, bridges, screw-retained bridges, models, attachments, inlays, veneers, connection bars, surgical guides, etc.

Materials usable with G5

• Wax, PMMA, various resins, composite, presintered zirconium oxide and aluminum oxide, hydroxyapatite, titanium (gr2 and gr5), Cr-Co alloy
