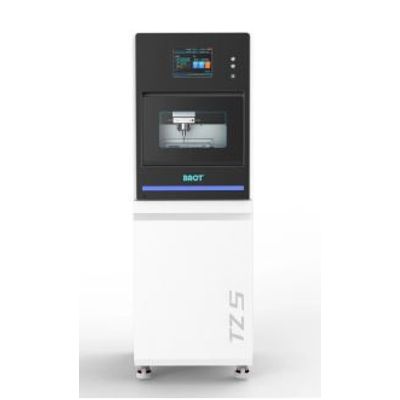

BAOT - Model TZ5 - Dental Milling Machine for Titanium and Glass Ceramic Applications
The TZ5 Dental Milling Machine is engineered for precision and versatility in the dental industry, featuring a five-axis linkage for comprehensive milling capabilities. Designed to work with a wide array of materials such as titanium, glass ceramics, HPP, and PMMA, it supports wet machining processes. Outfitted with an industrial-grade servo drive system and leading-edge guide rail mechanics, this machine offers exceptional accuracy and milling precision. Notable design features include its durable one-piece cast aluminum structure that ensures operational stability, an integrated cooling system, and a high-frequency spindle that can operate at speeds up to 60,000 RPM. The machine also supports advanced functionalities like intelligent memory processing and continuous milling operations post power restoration. BAOT provides robust after-sales and remote maintenance services, underpinning user support with an emphasis on operational efficiency and maintenance.
The milling machine TZ5 is equipped for wet machining and can handle a variety of materials including glass ceramic, titanium, HPP and PMMA.
The TZ5 dental milling machine is an innovative and versatile device with high-precision five-axis linkage for various milling scenarios. Its industrial-grade servo drive system and precision lead screw guide rail ensure exceptional milling accuracy. The one-piece cast aluminum structure enhances stability, and features like an integrated cooling system and high-frequency spindle contribute to precise machining. With continuous milling after power failure and intelligent memory processing, the TZ5 offers efficient performance. Additionally, we offer timely after-sales service and online remote maintenance support to provide comprehensive assistance for users.
- Diverse Holders: Versatile metal holders for diverse milling.
- Precision Machining: High-precision five-axis machining, minimal post-grinding.
- Industrial Servo Drive: Industrial-grade full servo drive system.
- Precision Guide Rail: Precise lead screw guide rail for high milling precision.
- Cast Stability: Stable with a one-piece cast aluminum structure.
- Integrated Cooling: Integrated cooling and liquid circulation.
- High-Speed Spindle: High-precision, high-frequency, high-speed spindle.
- Timely Maintenance: Timely after-sales and online remote maintenance.
- Continuous Milling: Continuous milling after a power failure, intelligent memory.
- Brand: BAOT
- Product Origin: Guangdong, China
- Shipping Port:
- Support Express ■ Sea freight ■ Land freight - Air freight
- Lead Time: 3~5 days for sample. 10~15 days for mass order
- Weight 193KC
- Dimension (LxWxH): 705 x 520 x 1590 mm Milling Mode: Wet Milling
- Axis Quantity: 5
- Milling Range: X:190mm/Y:110mm/Z:105mm, A360°. B:i35°
- Bur Specification: Quantity: 8 Diameter: 4mm/6mm Drive: Full Servo Drive
- Spindle: Speed: 0~60000rmp. Power 2.5KW
- Cooling Method: Water Cooled
- Power Supply: 220V. 50Hz
- Power: 3.SKW
- Air Pressure: 0.45-0.7MPa
- Processing Materials: Titanium, Class Ceramic. HPP, PMMA
