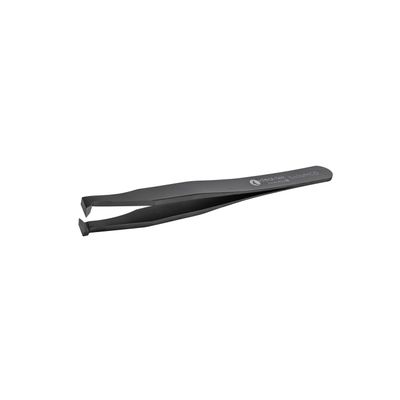

Model 15AGWM.C.D.0 -Diamond Coated Tweezers
FromIdeal-tek
Type 15AGWM diamond coated hard wire cutting tweezers are suitable to applications which require cutting surgical Alloy in the medical device manufacturing. The strong blades are designed to apply moderate cutting force. The Carbon Steel provides the hard and stiff tips to perform hard Alloy cuts. The blades are hardened to 61HRC hardness. The Diamond coating (DG4) provides the Carbon steel blades with a smooth surface combined with extremely high corrosion resistance and high wear and abrasion resistance.
Most popular related searches
Diamond coated Hard Wire cutting tweezers, full body - Carbon Steel - tips: cutting, predominantly angled blades, superior finish. OAL: 115mm - 4.53"
Category: Diamond coated Tweezers
Tip style: 15AGWM
Tip features: cutting
Tip type: predominantly angled blades
Component diameter/ cutting capacity (mm): 0.05
ESD safe: no
Body material: C
Body coating/ finishing: DG4
Special features: superior finish
Product OAL (mm - in): 115.00 - 4.528
Product width (mm - in): 10.00 - 0.394
Product height (mm - in): 14.00 - 0.551
Tip length (mm - in): 9.60 - 0.378
Tip thickness (mm - in): 4.00 - 0.157
Tip width (mm - in): 0.08 - 0.003
Tip opening gap (mm - in): 6.0 - 0.236
Degree of bending: 145.0
Net weight (g-lb): 25.0 - 0.055
RoHS compliant: yes
