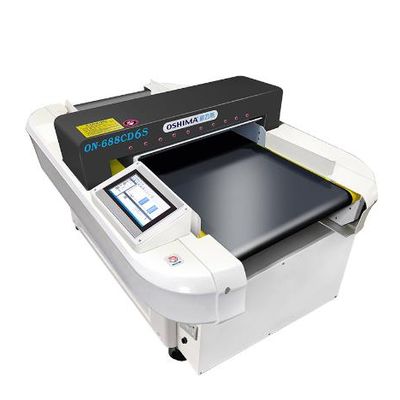

OSHIMA - Model ON-688CD6S/688CDD6S - Digital Conveyor Needle Detectors
Introducing the ON-688CD6S, the most recent needle detecting machine from OSHIMA! Expanded 10-point sensor probes improve sensitivity and reliability greatly. The detectors are controlled by a touch screen and have three sensitivity modes (ΦFe 0.8 mm, 1.0 mm, 1.2 mm), each of which is designed to satisfy certain detecting requirements. Ideal for use as a single machine or as an addition to current manufacturing lines.
Best practice
One-click detection modes
Data connectivity
Product count: pass/fail/total (time may be adjusted)
Advantages
Print function
Two-hour automatic calibration
Alarm and conveyor reverse on detection
User interface
Flat panel touch screen
Easy-to-use
Multilingual interface
Investment cost
Easy installation and use
Cost-effective maintenance
Integrable with other devices
Model
ON-688CD6S
ON-688CDD6S
Detecting Tower
Single tower
Double tower
Detective Height (mm)
100
Detective Width (mm)
600
Effective Detecting Height (mm)
90
Power Supply
1P AC220V 50/60Hz
Rate (W)
200
Detective capability of Iron Ball (mm)
ΦFe0.8/1.0/1.2
Sensitivity Adjustment
Level adjustment
Conveyor Speed (m/min)
32
Detection Method
Magnet
Alarm
Automatic buzzer and alarm indicator light, the conveyor rewinding function
Dimensions LxWxH (mm)
1720X1100X920
1820X1180X1100
Packaging Volume LxWxH (mm)
2160X1060X920
2330X1130X1100
N.W/G.W
280/380kg
420/570kg
