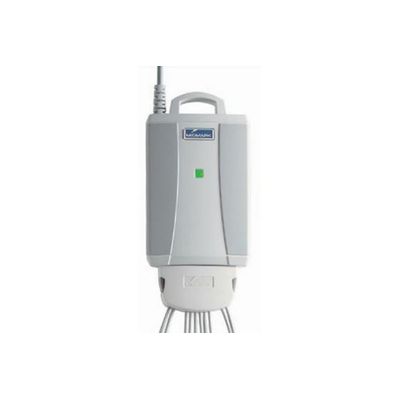

Midmark IQecg -Digital Diagnostics
The Midmark IQecg is designed with the physician and technician in mind to be easier to use and improve the clinical workflow. IQecg is designed to work seamlessly with today’s top EMRs in a variety of healthcare IT environments to save time and improve outcomes.
Intuitive
An intuitive user interface built on the Midmark IQconnect™ framework to reduce clicks and improve workflow.
Effective
New screen layouts and color scheme, electronic calipers, on-screen side-by-side comparison and editing tools with free-text fields deliver an improved workflow that’s still familiar.
Unlike typical ECG devices, instantly capture and analyze the 10 seconds of ECG seen onscreen.
Simple
We’ve made everything easier from accessing the patient chart, hooking up the patient, performing tests and seamlessly saving to the chart.
- Weight : 10.2 oz. (without patient cable)
- Dimensions : 3.5" (88 mm) W x 5.7" (145 mm) L x 1.2" (30 mm) H
- Power : USB port
- Dynamic range : ± 10 mV
- Impedance : >100 megohms
- Frequency response : 0.05-150 Hz-3dB
- Filters : AC, Drift, MYO (muscle artifact)
- ADC resolution : 13 bits at 2.44 uV/bit
- Electrode offset : ± 300 mV per AAMI and EC11 specifications
- Acquisition rate : 500 samples/sec
