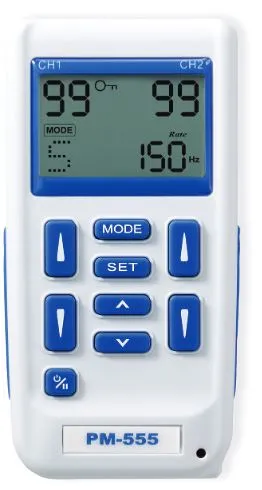

ProMed -Model PM-555 -Digital Electric Muscle Stimulator (EMS)
Pain Relief and Muscle Stimulation. LCD Display. Three Modes of Stimulation. Adjustable Timer, 5 minutes each step and constant. Cumulative (Compliance) Timer. System Includes: Stimulator, Lead Wires, 9V Battery, 4 Self-Adhesive Reusable Electrodes, Instruction Booklet, Hard Carrying Case. 9V AC Adapter; 9V Rechargeable Battery Kit Available.
Most popular related searches
muscle stimulation
muscle stimulator
neuromuscular electrical stimulator
pain management stimulator
neuromuscular electrical
electrotherapy system
pain management
neuromuscular stimulation
electrotherapy unit
electrotherapy
- Channels: Dual, isolated between channels
- Wave Form: Asymmetrical Bi-Phasic Square Pulse
- Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load each channel
- Pulse Rate: Adjustable, from 2 to 150 Hz, 1 Hz/step
- Pulse Width: Adjustable, from 50 to 300 microseconds,10 μs/step
- Ramp Time Adjustable, 1~8 seconds, 1 Sec./ step,
- The“On” time will increase and decrease
- Function Modes:
- Synchronous (S); Constant (C) and Alternate (A):
- S: Output from both channels occurs synchronously.
- The “ON” time includes “Ramp Up” and “Ramp Down” time.
- Therefore, the setting of ON Time should be no less than two
- times of the “Ramp”time in this mode.
- C: The pulse rate and pulse width are adjustable.
- A: The stimulation of the CH2 will occur after the 1st contraction
- of CH1 is completed. In this mode, the setting of ON Time should
- be no less than two times of the “Ramp”time. The OFF Time
- should be equal to or greater than the ON Time. ON TIME ≥ Ramp up +
- Ramp down OFF TIME ≥ ON TIME
- Cycle On Time: Adjustable, 2~90 seconds, 1 Sec./ step.
- Cycle Off Time: Adjustable, 2~90 seconds, 1 Sec./ step.
- Size: 11.8cm(L) x 6cm(W) x 3.1cm(H)
- Power Source: 9 volt alkaline battery
- Weight With Battery: 157 grams with battery.
- All values have 10% +/- tolerance
