DÜRR - Model DRP 2020 - Digital Radiography Panel
These models usher in a new generation of flat panel detectors suitable for a wide range of NDT applications. The 200 μm pixel pitch allows the panel to produce images with outstanding quality.
Most popular related searches

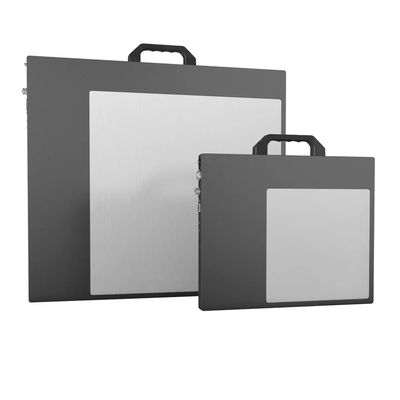

In order to provide the right solution for your application, we offer flat detectors in two different physical sizes as well as a choice between 14-bit and 16-bit image depths.
DÜRR NDT also offers complete systems and upgrades.
- DRP 2020 NDT / Gadox / 14 BIT. 15 fps @ 200μm, up to 16,384 gray levels
- DRP 2020 NDT / Gadox / 16 BIT. 25 fps @ 200μm, up to 65,536 gray levels
- Active area : DRP 2020 NDT: 204.8 x 204.8 mm (8.06 x 8.06")
- DRP 4040 NDT: 409.6 x 409.6 mm (16.13 x 16.13")
- Pixel pitch : 200 µm
- ADC : 14-bit version and 16-bit version available
- Dimensions (H x W x D) : DRP 2020 NDT: 295 x 360 x 22 mm (11.6 x 14.2 x 0.87")
- DRP 4040 NDT: 500 x 560 x 22 mm (19.7 x 22 x 0.87")
- Weight : DRP 2020 NDT: 3.7 kg (8.2 lbs)
- DRP 4040 NDT: 8.7 kg (19.2 lbs)
- Power supply : 100 – 240 V / 50 – 60 Hz, 215 W
- Operation /transport temperature : 10 to 40°C (50 to 104°F) /-10 to 55°C (14 to 131°F)
- Protection level : IP65
- Vibration : Equals IEC 60068-6 (10 – 150 Hz, 0.5 g)
- Interface : Ethernet (TCP-IP)
- Software : DÜRR NDT D-Tect
- Necessary accessories : Power supply unit, DC-cable, AC-cable, I/F cable
- Shielding : Varying shieldings for different keV levels available on request
