Medical ScientificModel SOLO DR 3543W - Digital Wireless X-Ray Detector

SHARE

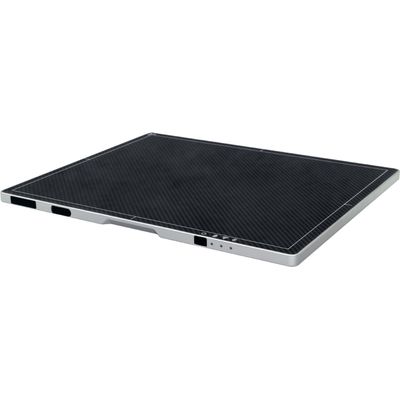

14x17" (35x43cm) Digital X-Ray Detector with a 140pm pixel size. When combined with our simple Acquisition Workstation, receiving and processing X-Ray images is fast and easy! The SOLO™ DR 3543W provides a complete approach to direct digital radiography. With this cassette size detector, an existing analog system is instantly transformed into a digital device. The Automatic Exposure Detection (AED) function allows for the detector to be used with various X-ray systems without the need for complex integration. With its light weight design, the detector is easily transportable and may be used in combination with a portable X-ray source for mobile imaging capability. The SOLO™ DR 3543W is a modern and reliable solution for obtaining excellent quality digital images. Wireless technology provides flexibility and convenience during examinations and is simple to use. The benefits include a more efficient imaging cycle, increased patient throughput and enhanced patient comfort.

Most popular related searches
  • Direct deposition CsI Scintillator
  • State-of-the-art a-Si TFT Array
  • High sensitivity
  • Low Noise
  • Superior DQE and MTF
  • High Speed Wireless Interface
  • Ergonomic design including indentation on the back for more convenient holding and carrying
  • Proprietary image enhancement through onboard software and hardware features
  • Fast processing for dual energy examinations
  • Available with an optional Acquisition Workstation or Standalone SDK

Detector Technology: a-Si TFT
Scintillator: Direct Deposited CsI or Gadox
Number of Pixels: 2500 x 3052
Pixel Pitch: 140 μm
A/D Conversion: 16 bits
Interface: Wireless
Ingress Protection: IP 54
Storage Temperature: 0ºC to + 55ºC
Operating Temperature: +10ºC to + 35ºC
Power Supply: Battery Powered
Dimensions: 460 x 383 x 15 mm (Dimensions are for reference only)
Weight: 3.5 kg
