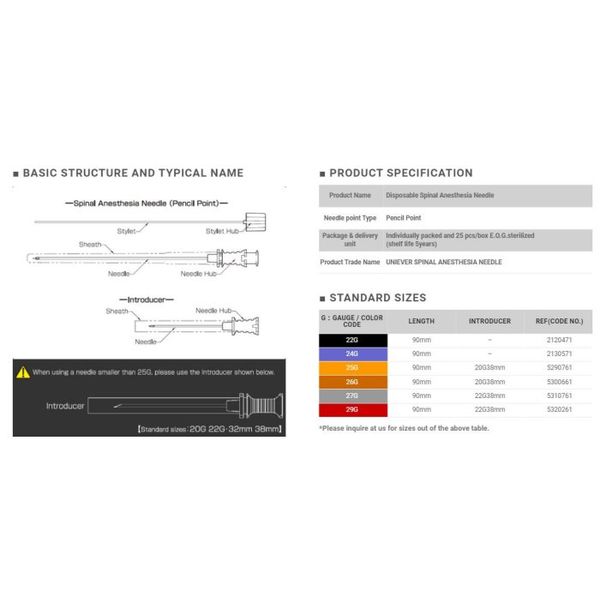

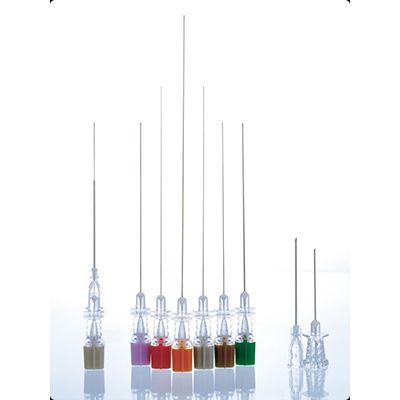

UNIEVER - Model Pencil Point - Disposable Spinal Anesthesia Needles
Our flagship product ensures high security and performance. The unique opening shape and careful processing result in minimal invasiveness not achieved with conventional cutting needles. Our pencil point needles are highly rated for user-friendliness and excellent quality among physicians worldwide.
Our original trapezoidal side hole is registered under #2112670 of the Practical New Ideas of the Japan Patent Office. This shape lets you securely feel the passage through the membrane and also helps achieve very rapid CSF flush back. The side hole located within
2mm from needle tip (except 22G) is efficient to prevent neuronyxis.
The shape of the side hole,the thin-walled tube, and the hub design work to provide unrivaled CSF flush back speed.
The crystal-clear polycarbonate hub that allows easy recognition of CSF is molded in luer taper in conformity with ISO594-1. Our strict quality controls guarantee an extremely smooth fitting of stylet and hub to prevent needle wobbling.
Pencil point needles cause puncture resistance that is up to three times greater than the resistance encountered by K-3 lancet point needles. This resistance affects the skin and tissues when the needle passes through. This is why it is recommended that an introducer is used with the non-cutting pencil point needle. On the other hand, the resistance may enable the anesthetist to perceive more distinctively the transit through the arachnoid mater, therefore decreasing the risk of nerve puncture.
(CUTTING VS. NON-CUTTING)
Several studies explain why a non-cutting point needle is less likely to cause PDPH. One of the theories is that the cutting point needle makes a sharp crescent-shaped cut in the arachnoid mater, while the non-cutting point needle makes an opening in the arachnoid mater comparable to a pushed-open clam shell. We have confirmed very similar opening shapes in an in-house experiment using polyamide films.
The sharp crescent-shaped cut took a long time to adhere while the blunt clam shell opening took less time to adhere, despite its large opening surface.
Using a measuring cylinder as the spinal cord, red-colored water as CSF, and the polyethylene film as the arachnoid mater, we observed the water leak after needle puncture of the film.
The puncture was considered more invasive when more water leak was observed following removal of the needle.
The red water leak stopped more quickly with the non-cutting needle than with the cutting needle, suggesting a more prompt CSF leak control is possible with a non-cutting needle.
Noncutting needles encounter high puncture resistance due to their blunt tips. To prevent damage to tissues, it is recommended that an introducer be used to secure insertion of the non-cutting needle while decreasing tissue damage.
The introducer can also decrease the risk of needle breakage and help prevent erroneous insertion, especially for fine needles of 25G or less. However, if the introducer is not correctly inserted, the tip of pencil point needle may pass through the spinal canal.
