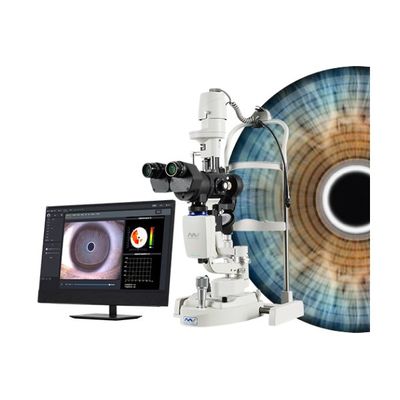

MediWorks - Dry Eye Diagnostic System

Platform for Comprehensive Ocular Surface Examination

Dry eye diagnosis/Anterior Segment Photography/Lens fitting/ Patient management/Telemedicine

Guided examination:providing a comprehensive report covering 7 dry eye diagnosis.Non-invasive examination,Quantitative data.

Full-automatic Firefly digital module ,easy operation without parameter settings.High quality optics and built-in yellow filter efficiently increase the accuracy of lens fitting.

Professional 1/1.8-inch sensor and 2.4μm pixel,real-time playing and storage. Smart patient management system,DICOM supported.

Microscope

• Microscope Type : Galilean Type
• Magnification Change : Revolving Drum 5 steps
• Total Magnification : 6.3X, 10X, 16X, 25X, 40X
• Optical Resolution : 2700·N lp/mm (200 lp/mm)
• Eyepieces : 12.5X
• Angle between Eyepieces : 10°
• Pupillary Adjustment : 52mm-80mm
• Diopter Adjustment : -8D~+8D
• Field of View : Ø36.2mm, Ø22.3mm, Ø14mm, Ø8.9mm, Ø5.7mm

Slit Illumination

• Slit Width : 0~14mm continuous (slit becomes a circle at 14mm)
• Slit Length : 1~14mm continuous
• Aperture Diameters : Ø14mm, Ø10mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm
• Slit Angle : 0°~180°
• Slit Inclination : 5°, 10°, 15°, 20°
• Filters : Heat-absorbing filter, ND filter, Red-free filter, Cobalt blue filter,Yellow filter built-in
• Lamp : LED
• Luminance : ≥150klx

Power Supply

• Input Voltage : 100V~240V
• Input Frequency : 50Hz/60Hz
• Rated current : 1.2A
• Output Voltage : 3V LED, Fixation 15V

System Specifications

• Digital Module : Automatic exposure/ Automatic white balance / Adjustable depth of field and aperture
• Image Sensor : 1/1.8-inch sensor / 2.4μm pixel / 5.0M Pixels
• Photo Resolution : 2592 x 1944
• Frame of Video : 25fps
• Video Formats : MP4 H.264
• Exposure Mode : Automatic exposure
• Transmission Interface : USB

Packaging

• Dimension : 740mm x 450mm x 530mm(L/W/H)
• Gross weight : 23kg
• Net weight : 17kg

Computer Specifications

• PC configuration : i5-10500T 8G memory 25GB SSD+1TB storage
• Display : 1920×1080 23.8inch
• PC system : Windows 10

Dry Eye Module

• AI Non-Invasive Tear Break Up Time : AI Non-Invasive Tear Meniscus Height
• AI identify the break-up area : AI identification system
• Automatic first break up time : Automatic Non-Invasive Tear Meniscus Height
• Automatic average break up time : Optical magnification
• Visible light Placido ring projection(23 ring) : Electronic amplification
• AI Conjunctival Hyperemia Analysis : Cornea Sodium Fluorescein Staining
• AI identification system : Eye surface damage report
• Automatic conjunctival congestion percentages : Built-in yellow filter
• Automatic ciliary congestions percentages : Cobalt blue filter
• AI Meibomian Glands Function Evaluation : Lipid Layer Thickness
• AI identify Meibomian glands : Template comparison evaluation
• Automatic Meibomian glands loss classification : Visible light White ring projection system
• Eyelid Margin : Dry Eye Examination Report
• Optical magnification : Automatic analysis report
• Electronic amplification
