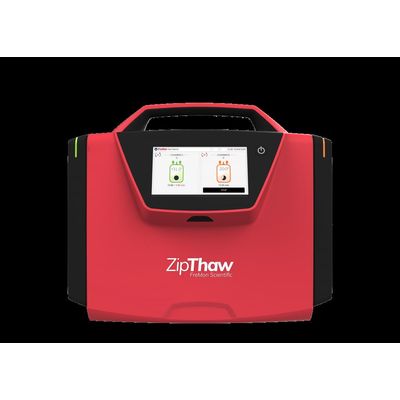

ZipThaw - Model 47-ZT202D - Dry Thawing Device
A dry thawing device setting a new standard for thawing applications. ZipThaw has FDA clearance, CE Mark, ISO certification, AABB Standards-Compliant and UL listing for thawing fresh frozen plasma (FFP) and plasma frozen within 24 hours after phlebotomy (FP24).
ZipThaw® is a dry, portable, rapid thawing device combined with FreMon Scientific’s proprietary and disposable ZipSleeve®. Each bag of plasma is uniformly thawed to the optimum temperature ensuring accuracy, safety, and less waste.
This lightweight, portable unit has a compact footprint, low capital cost and minimizes cross contamination with the use of patented disposables. ZipThaw reduces operating costs via lower energy use, reduced maintenance, less labor and almost no blood product waste. Each device has two chambers which work independently to thaw a bag of frozen plasma.
ZipThaw has FDA clearance, CE Mark, ISO certification, AABB Standards-Compliant and UL listing for thawing fresh frozen plasma (FFP) and plasma frozen within 24 hours after phlebotomy (FP24).
Product Overview
- Consistent temperature control
- Dry thawing system
- Small footprint, light-weight and easy to transport with built in handle
- Rapidly and completely thaws specimens
- Low maintenance with ZipSleeve nearly eliminating the risk of any cross contamination
- Continuous data capture reports the full thawing cycle
- No recalibration needed when moved
- Integrated barcode reader for freezer-to-vein tracking
- 3-year full replacement warranty
Special Features
- Accelerate throughput: Each chamber works independently so you can continuously melt and thaw specimens.
- Know viability: Precise temperature display with alarm that alerts shut off.
- Capture data: Each thaw is tracked on a hard drive with data to export later.
Place a frozen bag of plasma into a ZipSleeve. This patented disposable component is multi-use and leak-proof. Putting frozen product into ZipSleeve protects the device, prevents contamination, and works with ZipThaw for rapid thawing. If a bag of plasma ruptures, simply toss out the ZipSleeve.
With the frozen plasma in a ZipSleeve, place it into one of the two ZipThaw chambers.
Retrieve ready-to-use plasmaIn short order, the plasma is thawed to your specification with software recording its progress every step of the way. Data is easily transferred via the USB and ethernet port.
Dimension (Inches): 18.5 W x 10.9 D x 16.4 H
Dimension (Centimeters): 47.1 W x 27.6 D x 41.6 H
Weight: 29 lbs / 13 Kg
Thawing Technology: Electrical power, disposable RFID sleeve
Typical Capacity: Single or dual independently operated chambers
Heating Temperature: Thawed plasma not to exceed 37°C±0.5°C; Precise sensors display end-of-run actual thawed plasma temperature
ZipSleeve Sensors: Cutoff Temperature: Melt 15°C / Thaw 31°C
Agitation Method: Electronic control mechanical massage
Visual Display: 7” touch screen
System: Main CPU: VAR-SOM-SOLO/Dual: Freescale i.MX6
Storage humidity : 30% - 90% non-condensing
Interface & Network: USB 2.0 OTG
Internal Memory: Stores 2,000 most recent cycles
Electrical Rating : 100-240Vac, 50/60Hz 2.5Amp
Internal Power Supplies: Medical grade, isolating power-supply
- Input: 100-240Vac, maximum rated current 2.5A
- Outputs: 2 X 24VDC, 12.5A maximum current
Environmental Requirements:
- Ambient Operating Temp: 10°C to 32°C (50°F to 86°F)
- Ambient Humidity: 20% to 70% non-condensing
- Storage Temperature (in original packaging): -20°C to 70°C -4°F to 158°F)
