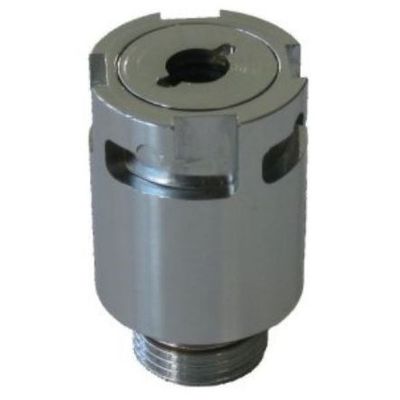

CAHOUET - Dual Valves Terminal Units for Medical Devices
FromCAHOUET S.A.S.
The monobloc dual valves terminal units are designed for the feeding of low-pressure medical gas to medical devices (gas specificity according to NFS 90-116 and NFS 90-119). The non return valve located in the terminal unit enables its maintenance (filter according to model and main valve) without any obligation to interrupt the gas supply.
Most popular related searches
- Operating inlet pressure:
- - 4 bar + o (compressed gas)
- - 8 bar *?(surgical tools)
- Flow: (according to ISO 9170-1)
- - 40 l/min (air) at 3,2 bar inlet pressure with ?P = 0,15 bar
- - 350 l/min (air) at 5,6 bar inlet pressure with ?P = 0,7 bar
- Operating and storage temperature:
- - 20°C at 60°C
- Connections: G 3/8" M
- Available models:
