Huiyao -Model S Series -Dynamic Co2 Laser Marking Machine
S series dynamic CO2 laser marking machine adopts dynamic front focusing technology, which makes the focused spot thinner, faster and better effect, suitable for large-scale marking or cutting. Compared with the traditional back focus marking machine, the S series dynamic CO2 laser marking machine does not need to replace different flat field lenses to obtain different marking ranges.
- Laser wavelength: 10.6um
- Laser power: 100W 150W 200W
- The scope of work: 400-2000mm
- Marking line speed: ^5000mm/s
- Repeatability positioning accuracy: = 0.01mm
- Cooling method: Water cooling
- Power requirements: AC220V 50Hz 5KVA
- Average power consumption: ^l.SKW
- Weight: 260KG
- Overall size: 2.35*0.67* 1.65m

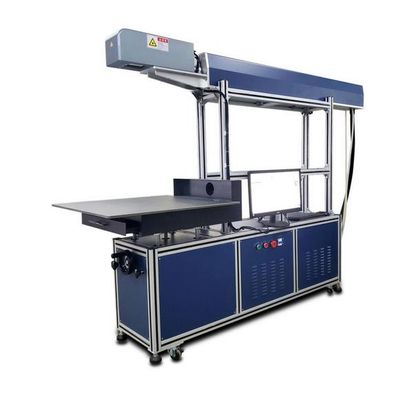

S series dynamic CO2 laser marking machine adopts CO2 laser and high-speed optical scanning galvanometer, hardware control system, marking control software system and high-precision constant temperature water cooling system. The whole machine diagram is shown in the figure:
The control part of the whole machine is concentrated in the main control cabinet part, and the optical components of the whole machine are concentrated in the optical main beam and the square head through the complete optical path design. The integrated chiller (the chiller is an external device, not in the diagram of the whole machine) provides a cooling water circulation system for the whole machine to work normally. The equipment mainly includes the following main parts:
- Optical system
- Refrigeration system
- Electrical control system
- Industrial computer and marking control card
- Marking Control Software
- Manual lift table
