- Best value
- Easy-to-use
- Compact Size
- Menu-driven operation
- Large LCD Display
- Tactile keypad
- Battery or AC operation
- ECG: 12 leads with independent outputs referenced to RL
- NORMAL SINUS RHYTHM (NSR)
- ECG Rates: 30, 60, 70, 80, 90, 100, 120, 150, 180, 210, 240, 270, 300, and 350 BPM. Accuracy 0.5%.
- Amplitudes: 0.15, 0.3, 0.5, 1.0, 2.0, 3.0, 4.0, and 5.0 mV on Lead II. Lead 1 is 0.6 X Lead II, Lead III is 0.4 X Lead II, and Lead V is the same as Lead II.
- High Level: 500 X low-level output on Lead II.
- Accuracy: 2% (1-5mV).
PERFORMANCE WAVEFORMS (PERF)
- Sine, Square, Triangle, Pulse
- Frequencies: 0.1 to 0.9 in 0.1 Hz steps.1.0 to 9.0 in 1.0 Hz steps.10 to 100 in 10 Hz steps.
- Accuracy: 1%
- Amplitudes: 0.1, 0.2, 0.5, 1.0, 2.0, 3.0, 4.0, and 5.0 mV on Lead II.
- Pulse: 20 ms pulse of 1mV amplitude repeated at 4-second intervals.
R WAVE DETECTION (RWD)
- Widths: 10, 40, 50, 60, 70, 80, 90, 100, 110, and 120 ms.
- Amplitudes: 0.15, 0.3, 0.5, 1.0, 2.0, 3.0, 4.0, 5.0 mV on Lead II
- PACER (PCR)
- AP: Atrial Pacer set at 70 BPM
- ASP: Asynchronous Pacer- Ineffective Pacing
- QRS Amplitudes: 1 mV
- PCR: Pacer pulses alone
- Pacer Widths: 0.1, 0.2, 0.5, 1.0, 1.5, and 2.0 ms
- Amplitudes: 0.15, 0.3, 0.5, 1.0, 2.0, 3.0, 4.0, and 5.0 mV
- VP: Ventricular Pacer set at 70 BPM
- AVP: Atrial Ventricular Pacer set at 70 BPM
- QRS Amplitude: 1 mV.Pacer Amplitude: -2mV

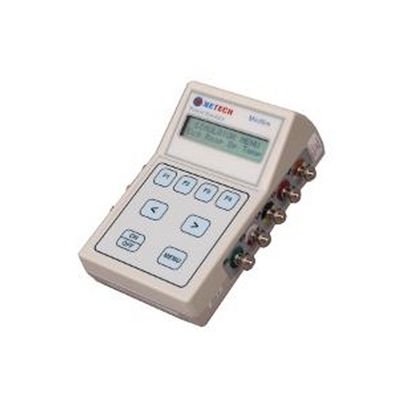

Don’t be fooled by its name; it may be “basic”, but it has a lot to offer you. The MiniSim-12 provides full 12-lead ECG simulation with 14 user-selectable rates ranging from 30 to 350 BPM, and 14 user selectable amplitudes from 0.15 to 5 mV. The performance waveform includes Sine, Square and Triangle. There are 14 user-selectable waveform rates from 0.1 to 100 Hz and amplitudes from 0.15 millivolt to 5 millivolts.
The instrument is also designed to simulate 45 different arrhythmias including atrial, ventricular, tall T wave, ST elevation, ST depression, myocardial infarction, blocks, pulse and pacer waveforms.
As it is, the MiniSim Basic packs a high degree of functionality and versatility that will cover your ECG testing requirements. If you find your needs increasing, you can conveniently upgrade the device’s software to receive the MiniSim 1000’s full function patient simulator features; that includes blood pressure, respiration, and temperature simulation (YSI 400/YSI 700 compatible).
