MESA -Model PM10 mini -ECG-Monitor

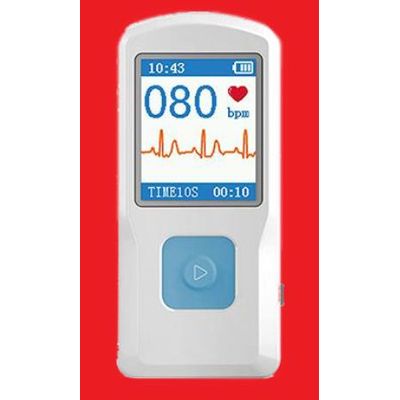

PM10 mini – Pocket size ECG-Monitor with TFT-Display, rechargeable battery and Bluetooth™ interface Compact and small ECG-Monitor with memory function for fast recording of an ECG.
Most popular related searches
- Easy operation mode
- Fast ECG recording by contact withintegrated ECG-Elektrodes at Fingerand palm of hand or at finger and chest
- ECG recoding and memory up to 100 ECGs
- Up to 500 ECGs with one time battery charging
- Indication of battery capacity
- ECG view by internal backlighted LCD display
- USB cable for data transfer to PC
- WINDOS based Software for ECG analysis and documentation (Download via Internet)
- Delivery incl. USB cable and textile bag
- Light, compact, rechargeablebatterypowered
- Weight 60 g, Size: 140 x 75 x 26 mm
- TFT-LCD colour display for ECG and HF (1,77”)
- Detectionrate: 250 Hz –ECG alarm tone
- Heartrate: from 30 bpm up to 300 bpm
- Recording (Monitoring) 10, 15 or 30 sec.
- Memory capacityupto100 ECG recordings
- ECG analysiswithin15 sec.
- ECG leads: Standard I, II, III
- ECG amplification(1 mV +/ 5%, 10 mm/mV)
- ECG speed: 25 mm/sec. +/-5%
- USB.cableforconnectiontoPC incl..Software foranalysisanddocumentation
- Banwidth1,0 ... 20 Hz (+0,4 dB –3.0 dB)
- ProtectionclassBF, IP22
