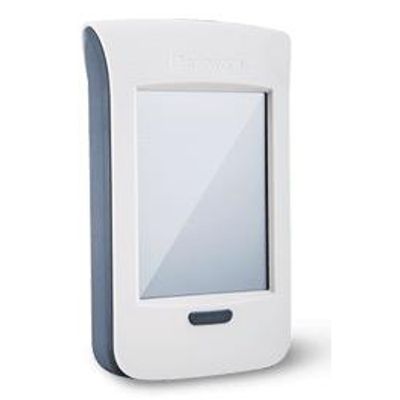

CardioShield -Model PC -ECG System

WiFi/USB/Bluetooth

• Can be used with mobile phones or tablets
• Get a clearer display

Many ECG-assisted analysis tools

• Column spectrum ECG, QT dispersion analysis,
• high frequency electrocardiogram and so on

Color touch LCD screen

• can input patient basic information by handwriting
• display multi-leads waveform (CS-28X models only)

Automatic diagnosis

• Improve efficiency

Unique anti-interference technology

• support anti-defibrillation function

High Sampling Rate(up to 10000Hz)

• High Signal to NoiseRatio(>100dB)
• High Precision Hign Resolution(16bit)
• All channels can collect and analyse pacemaker signals

• Channel : Synchro 12 Channel
• Interface : LCD Color TV touch screen/button
• Sampling rate : 10000Hz in maximum
• Connector : USB 2.0
• Auto acquisition time : Optional(10 seconds to 60 minutes)
• Built-in storage : Built in FLASH storage, support 200 routine records
• Pacemaker : On

Specifications

• Dimension : 126.5 x 75.8 x 24mm
• Weight : 168g(with LED),120g(without LED)
• Housing : Mould plastic
• Cable lines : 10 electrodes

Environment

• Work temperature : 0? to +45?
• Storage temperature : -10? to +70?
• Work humidity : 10% to 95%
• Storage humidity : 5% to 95%
• Work altitude : -150m to 4500m
• Storage altitude : -150m to 4500m

Power supply

• Mode : USB rechargeable battery

Electrice source :

• Supply voltage : 5V
• Frequency response : 0.05-410Hz @-3dB
• Signal resolution : 24bit
• CMRR : ≥89dB
