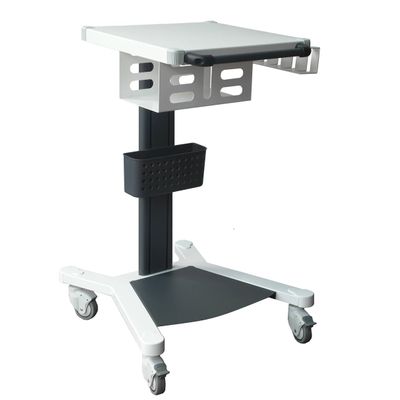

Model CAR1P/MNF-ECOPGRAH - Ecograph Trolley

SHARE

Supporting structure composed of 1 side member H.95 cm in extruded aluminum produced and patented by us exclusively. the upper part of the upright is closed with a special cap in thermoplastic material. Base In tubular steel measuring 60/30 x 2 with sheet metal that serves as a shelf. Nr.1 Shelf in painted steel sheet adjustable in height, suitable for supporting electromedical machines measuring 45x43 cm equipped with front handle, probe holder, and printer housing. Four twin wheels Ø mm. 80, the front ones are complete with double action brake. Nr.1 Basket adjustable in height made of plastic material. Structure entirely painted with epoxy powders in a thermal tunnel at 200°.

Most popular related searches
medical trolley
electromedical

Depth 95cm

Height 68cm

Width 46cm

  • Registration with the Ministry of Health (CND)
  • CE mark,
  • declaration of conformity,
  • Accessories and assembly instructions

Base

  • Structure with crosspieces in 60/30 tubular steel, solid and designed to prevent any overturning
  • Lateral crossbar on which the aluminum support bar is screwed using screws, the four wheels are positioned in the underlying part
  • Plastic caps are placed at the ends of the bar to close, which act as bumpers
  • Treatment with epoxy paint finish in thermal tunnel



Wheels

  • Support: Polyamide
  • Pirouette: on double turn of spheres
  • Band: gray non-marking synthetic rubber
  • Core: Polyamide
  • Diametro:80 mm
  • Capacity: Kg.100 each
  • Front wheels: with double action brake (simultaneous blocking of pivoting and rolling)
  • Fixing: fixing to the base with plug-in pins



Uprights

  • Nr.1 central upright firmly fixed to the base of the trolley by two M10x50 galvanized steel screws. The Upright includes 2 rails (hollows) in the longitudinal direction, these rails are used to fix the various components of the trolley and any accessories. All elements fixed to the uprights can be adjusted in height.
  • Treatment with epoxy paint finish



Shelf

  • In steel sheet thickness 20/10 mm, dimensions mm. 400x360 mm, treatment with epoxy paint finish, complete with accessories. Included.
  • Basket: Made of plastic material with special holes for the passage of air, the basket can be adjusted in height according to needs.
  • Housing Printer holder internal measures P.30cm - H.12cm - L.17,5cm
  • Front handle that allows easy movement
  • 4-position probe holder accessory
