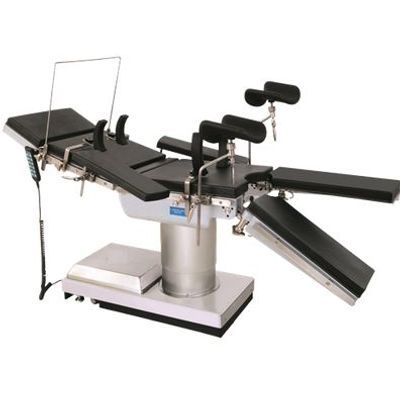

Medeco -Model ECOH003-C -Electric Operating Table
Electric Operating Table ECOH003-C This Electric Operating Table ECOH003-C is developed independently by our company wity innovativ and advanced technologies. The table is a compehesive one with high-quality and multi-purposes,which takes the leading position in the domestic market. The table can be used in almost all kinds of operations by means of speical design.
- Overall Length/ Width: 2050mm/500mm
- Min Height/ Max Height: 580-930mm
- Reversed Trendelenburg/ Trendelenburg: ≥20°/≥15°
- Lateral Tilt: ≥15°
- Backward and Forward Movements: ≥350mm
- Adjustment of sections:
- Head Section Raised /lowered from the horizontal:≥45°/≥90°
- Back Section Raised / lowered from the horizontal: ≥75°/≥30°
- Leg Section Lowered from the horizontal: ≥90°
- Leg section opened:≥90°
- Back rise(When optional):≥80mm
- Horizonal ratation of tabletop:0~180°
- Lifting speed:4~16mm/s
- Safe working load: 250kg
- Battery capacity is 14 AH Battery capacity ≥ 2.4AH
This Electric Operating Table ECOH003-C is developed independently by our company wity innovativ and advanced technologies. The table is a compehesive one with high-quality and multi-purposes,which takes the leading position in the domestic market. The table can be used in almost all kinds of operations by means of speical design. The bedtop can be moved vertically and rotated horizontally. The tableboard is made from high-intensity synthesis panel. X-Ray transmissive, easy adjustment and easy use of C-arm make the table can be more capable for any operation. The operating table is controlled by Control Circuit, which is easy operation, low noise,reliable performance. 2000L operating table has almost the same functions with 99C, except that ECOH 003C-1 can`t be moved in vertical direction.
