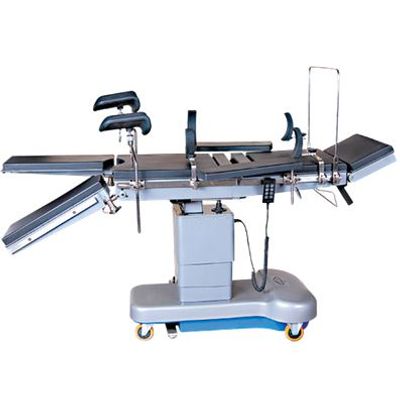

Medeco -Model ECOH006-D -Electric Operating Table
Electric Operating Table ECOH006-D The product is designed for head, neck, throax and abdomen, perineum as well as gynecology and obstetrics,orthopaedics and so on operations. The table`s elevation, lowering, reversed trendelenburg; trendelenburg,lateral tilt are all automatically controlled by the Button,the back section elevation is controlled by high pressure gas jar. It can be adjusted easily.The airproof base is dustproof, waterpr-oof and stable,its model is easy for doctor to near the parient, and reduces the doctor`s weary.
The product is designed for head, neck, throax and abdomen, perineum as well as gynecology and obstetrics,orthopaedics and so on operations. The table`s elevation, lowering, reversed trendelenburg; trendelenburg,lateral tilt are all automatically controlled by the Button,the back section elevation is controlled by high pressure gas jar. It can be adjusted easily.The airproof base is dustproof, waterpr-oof and stable,its model is easy for doctor to near the parient, and reduces the doctor`s weary. The table is made of high-strength synthetic boards, it can penetrate the X-ray, it is advantageous for the perspective and the photography. Senior PY foam material is optional for mattress, it also can be used with C-arm.
Fiberglass reinforced plastic or Stainless steel is optional for the cover of base.
- Overall Length/Width: 2100mm/500mm
- Dimension of section:
- Table top of from floor
- Min / Max Height: 750mm/1000mm
- Reversed Trendelenburg/ Trendelenburg: ≥20°/≥15°
- Lateral Tilt: ≥15°
- Backward and Forward Movements: ≥250mm
- Head Section Raised/ lowered from the horizontal: ≥45°/≥90°
- Back Section Raised/ lowered from the horizontal: ≥75°/≥30°
- Leg Section Lowered from the horizontal: ≥90°
- Leg section opened: ≥90°
- Kidney Bridge Elevated:≥80mm
- Lifting speed:4~16mm/s
- Safe working load:135kg
- (DC)24V Internal electric source:(DC)24V
- Battery capacity ≥ 2.4AH
