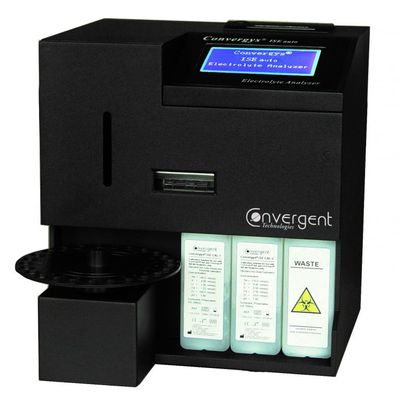

Convergys - Model ISE auto - Electrolyte Analyzer
The Convergys® ISE Auto Electrolyte Analyzer is based on the advanced ion selective electrode (ISE) technology. It measures K+, Na+, Cl–, Ca++, Li+ , pH and TCO2 (optional) concentrations in whole Blood, Serum, Plasma, Urine or CSF. The Analyzer is designed, developed and manufactured in Germany. It has a very compact design and the only interface is an extremely user friendly LCD touch panel with a logically assigned menu structure. The Analyzer is equipped with a fully automatic sample aspiration probe. The samples are aspirated from sample cups which are stored in a sample rotor with 25 sample positions located underneath the sample aspiration probe. Position 0 is used for calibration, emergency samples, rinsing and sensor testing. The Analyzer can store up to 500 tests and 31 tests for each of the 2 QC levels.
- Measured Parameters: K+, Na+, Cl–, Ca++, Li+, pH and TCO2 (optional)
- Autosampler for 24 samples and 1 emergency sample
- 100 μl sample volume of whole Blood, Serum, Plasma, Urine or CSF
- 60 tests per hour throughput
- Optional TCO2 measuring module
- Built-in thermal printer
- Automatic two-point calibration
- 2 level QC management and integrated statistical analysis
- 240×128 dots touch LCD
- Large data storage for 500 results
- Integrated air-liquid-air-liquid rinsing mode to avoid carry-over
- Measured Parameters: K+, Na+, Cl–, Ca++, Li+, pH and TCO2 (optional)
- Measuring principles: ISE based Electrolyte analysis to determine the ion concentrations of K+, Na+, Cl–, Ca++, Li+, pH; Pressure
method and reaction solution for the determination of TCO2 concentration - Throughput: 60 tests/hour
- Reagent system: Calibrator-1 solution, Calibrator-2 solution, Cleaning solution, ISE and Ref electrode filling
solution, TCO2 reaction solution as optional - Sampling method: Fully-automatic aspiration system using sample cups
- Sample volume: 100 μl
- Sample types: Human (general): whole Blood, Serum, Plasma, Urine or CSF (Built-in reference ranges)
- Cleaning procedure: Chemical cleaning of the measuring chamber and tubing system with cleaning solution
- Quality Control: 2 QC levels. QC parameters include all measured parameters. Separate QC database Option for automatic calculation of calibration factors of each ion
- Calibration: Automatic two-point calibration with additional option for carrying out one-point and two-point
calibration manually - Standby Mode: Pre-adjusted with automatic calibration step
- User interface: Easy-to-use, menu driven user interface with touch LCD display
- Diagnostics: Self check function for diagnostics with easy to understand messages
- Languages available: English menu
- Data capacity: 500 results
- Host computer Interface: RS-232 serial link for data download
- Built-in printer: Stationary head graphical thermal printer, 58 mm wide paper roll. Prints full reports
- Display: 240×128 dots high contrast and backlit touch LCD display
- Power requirements: 100–120 or 200–240 VAC, 50–60 Hz
- Operating conditions: 15–30 °C, 59–86 °F (optimal temperature is 25 °C, 77 °F), 20–80 % RH
- Dimensions and weight: (W x D x H) 300 x 290 x 275mm, ca. 6.5 kg
