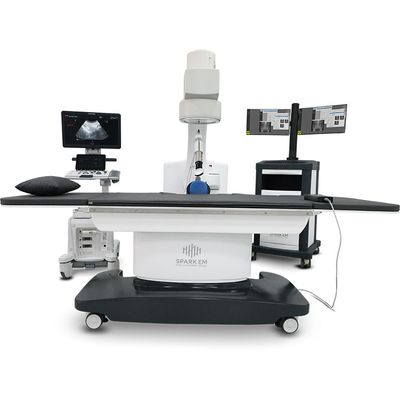

Inceler Medikal -Model SPARK EM ESWL -Electromagnetic Lithotripsy System
The SPARK EM ESWL is an advanced electromagnetic lithotripsy system designed to provide efficient stone fragmentation with high precision and minimum discomfort. It leverages an electromagnetic mechanism complemented by an optical lens, delivering highly accurate shock waves. Its ergonomic design caters to patient comfort, enabled by a specially engineered water cushion ensuring optimal contact and treatment efficacy. The system incorporates a degassing feature that minimizes gas in the generator's liquid, facilitating superior shock wave conduction. Moreover, its C-Arm fluoroscopy unit features a comprehensive range of motions controlled remotely, enhancing imaging precision. Spark EM ESWL excels in treating overweight patients due to its profound penetration depth, offering focus options that cater to both typical and complex stone formations. Additionally, it integrates X-ray and ultrasound imaging technologies, allowing precise stone detection and monitoring, crucial for non-invasive treatments. Its modular design and ease of mobility further optimize operational efficiency in clinical settings.SPARK EM ESWL, works with its electromagnetic working principle supported by an optical lens, provides high accuracy and low precision values, with minimum pain and other complications.
The shock therapy head of SPARK EM has a design that is completely compatible with the patient’s body. Thanks to the improved water cushion design, maximum coupling with the patient’s body and treatment efficiency are provided.
With its special degassing feature, Spark EM ESWL decomposes the gas inside the liquid of generator to the minimum level ( 1-1,5 mgr/Lt) and provide best shock wave transmission with least pain on patient.
Motions of C-Arm with X-Ray tube and Image Intensifier can be controlled remotely with Remote Hand Control Unit.
Crano-caudal Rotation angle of C-Arm is total 60 degrees. This angle and motorized motions of the C-Arm can be arranged by Remote Hand Control Unit.
C-Arm has the ability to move 30 degrees to the right - 30 degrees to the left. The C-Arm of the device provides an advantage in focusing and imaging with its bidirectional movement capability.
Spark EM ESWL Systems are compact and detachable when desired,
with Stone Crushing Unit, Patient Treatment Table and C-arm Scopy System.
A sleeveless model is produced for those who want to use it with an independent C-arm Scopy.
The SPARK EM ESWL electromagnetic shock wave system transmits the high maximum energy that enables perfect stone fragmentation through a deep focus with the best hit rate. This is how it provides low energy density for non-invasive treatment.
One of the most important features of the Spark EM ESWL System; It has a high penetration depth.
It makes a great contribution in the treatment of overweight patients.
