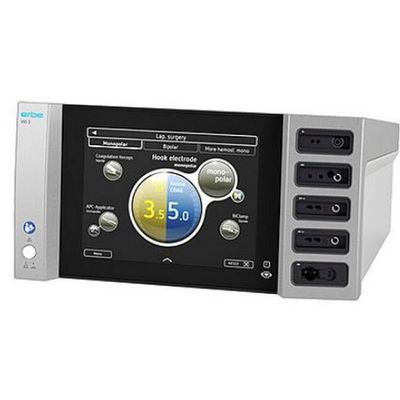

Erbe VIO 3 - Model 10160-000 - Electrosurgery Unit
Logical, convenient and visual operator guidance (stepGUIDE). Reliable, reproducible tissue effects thanks to state-of-the-art processor technology. ReMode: up to 6 different settings selectable from the sterile field. Sockets: easy replacement, connection recommendations, slot assignment, up to 6 instruments freely selectable.
Power output
- Safety system : NESSY
- Maximum CUT output : [400 Watt an 300 Ohm]
- Maximum COAG output : [bis zu 360 Watt]
Mains connection
- System voltage : 100-120 / 220-240 Volt
- Power frequency : 50 / 60 Hz
- Power input during stand-by : <30 Watts
- Power input during max RF output : [550 Watt]
- Potential equalization connection : yes
Dimensions and weight
- Width x Height x Depth : 415 x 215 x 375 mm
- Weight : 12 kg
Additional product information
- Packaging unit : 1 Piece
Characteristic:- Value
Width x Height x Depth:- 415 x 215 x 375 MM
ECLASS_8:- 34-58-01-01
ECLASS_N:- 34580101 ST
ElektroG Geräte:- 4
Packaging unit:- 1 ST
Power input during max RF output:- 550 Watt
Power input during stand-by:- <30 W
Maximum COAG output:- up to 360 watts
Maximum CUT output:- 400 Watt an 300 Ohm
Power frequency:- 50 / 60 Hz
System voltage:- 100-120 / 220-240 V
Potential equalization connection:- Yes
Safety system:- NESSY
