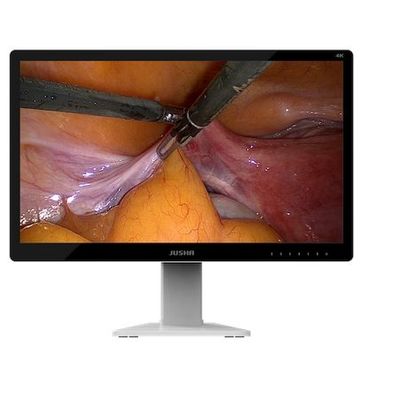

Jusha -Model E320AG -Endoscopic Surgery Monitor
A special monitor for endoscopic surgery adopts 4K ultra-high-resolution LCD panel, with accurate color reproduction, good color depth, smooth dynamic range, and wider viewing angle. This meets today`s rapidly changing medical display needs, enabling a clear and precise visualization of the surgical images. Waterproof design, antibacterial treatment, good compliance with electromagnetic compatibility regulations, a variety of video input and output interfaces. All of these make this product fully meeting the requirements of various applications in operating rooms.
1. Accurate color reproduction
All professional monitors in JUSHA surgical monitor product line applies 42-bit LUT technology, which can linearly represent more than 4.398 trillion colors, to accurately restore the color of human, so that surgeons can make more accurate judgments.
2. High color depth
This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.
3.Smooth dynamic motion
The response time of this JUSHA surgical monitor is less than 9ms, so that I can smoothly present surgical videos from standard resolution to ultra-high resolution, and clearly display the bleeding status and other delicate operations during the operation, without smear and jitters.
4. Meet the operating room purification and anti-interference requirements
This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The fully enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the display.
5. Various interfaces
This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world`s major camera systems.
- Model E320AG
- Type IPS
- Backlight LED
- Diagonal size 32`` (812.8 mm)
- Display area 708.48 × 398.52 mm
- Resolution 3840 × 2160
- Aspect ratio 16:9
- Pixel Pitch 0.1845 × 0.1845 mm
- Color Depth 10 bit
- LUT Depth 14 bit
- Viewing angles 178°
- Maximum brightness (typical) 850 cd/m²
- Maximum calibrated brightness 650 cd/m²
- Default brightness 420 cd/m²
- Minimum brightness 200 cd/m²
- Presets GAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6,DICOM
- Contrast ratio 1350:1
- Response time(Ton+Toff)/2 9 ms
- Features PIP?Multi-window(4)
- Video input DVI × 1, DP1.2 × 1, HDMI2.0 × 1, HDMI1.4 × 1, 3G-SDI × 3, 12G-SDI × 1
- Video output DVI × 1, 3G-SDI × 1, 12G-SDI × 1
- Other I/O DC 5V 1A (with plug5.5*2.5 mm) × 2, RJ45 × 1, USB-B × 1
- Power input "DC: 24V, 6.25A Power AC: 100~240V, 50/60Hz"
- Typical power 90 W
- Maximum power 150 W
- Power saving < 0.5 W
- Backlight stabilizer Yes
- Other sensors No
- Protective glass Yes
- Housing color White
- (W x H x D)Dimensions with stand(W x H x D) 758.7 × (571-631) × 260.9 mm
- (W x H x D)Dimensions without stand(W x H x D) 758.7 × 468.2 × 72.68 mm
- Net weight with stand 16.5 Kg
- Net weight without stand 12.2 Kg
- VESA 100 × 100 mm, 100 × 200 mm
- Certications CCC, CE
