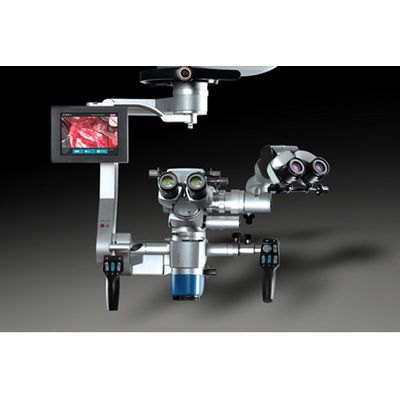

Haag-Streit -Model HI-R 1000 -ENT Microscopes
Experience a new level of visualization, with best-in-class stability and effortless movement through our exclusive SensoServo fly-by-wire technology. The Hi-R 1000 also enables you to stay focused on the surgical field. That’s because the optional image injection system displays the live image and the OCT scan simultaneously in both binoculars. Add the Sony 3D video system to enhance co-observation and teaching, and you have an unparalleled microscope for neurosurgery.
- Optics : Apochromatic
- Working distance : Motorized 224mm to 510 mm. (Optional 200mm to 450mm)
- Stereo base : 25 mm
- Magnification : Motorized zoom 1:6, 1.4x to 15.2x
- Diameter visual field : 14.7mm to 156.0mm
- Illumination field : 13.0mm to 110.0mm
- Binocular : 0-200° inclinable with 10x eye piece
- Inclination : -50° to +120°
- Lateral Tilt : +/-45°
- Rotation : 540°
- X-Y movement : Axial
- Light source : Xenon
- Optional monitor : Full HD 1080p
With Haag-Streit’s C.INECT, high resolution OCT images are overlaid as a picture-in-picture in both binoculars, so you can stay focused on the surgical field. And because you can observe the live image and the OCT scan simultaneously, you not only save time, you can limit fatigue during your workday.
Highly configurable for advanced teaching
This microscope features:
- 25mm stereo base
- Dual 300W Xenon light source
- 5-step illumination diaphragm
- Active light routing system between face-to-face and side observation
- Electromagnetic brakes
- Motorized zoom and focus
- Double iris diaphragm
The Hi-R 1000 offers the best 3D depth perception in the market, a large depth of field, and legendary optics, all on the most stable foundation—it never needs to be balanced.
Several features make it ideal for teaching. The unique, optional image injection lets you view the live image and the OCT image at the same time through both binoculars. And with the optional Sony 3D video system you can capture any images you need.
Making this microscope even easier to use is our exclusive Senso-Servo fly-by-wire technology that provides effortless, precise movement.
Experience it for yourself.
