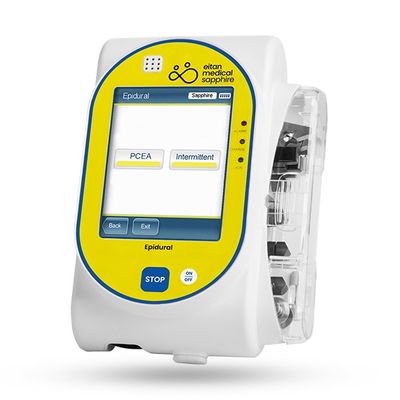

Sapphire - Epidural Pump

The Sapphire Epidural pump is dedicated to Epidural infusion.

Most popular related searches

While sharing the key benefits with the Sapphire infusion platform, the dedicated Epidural pump is tailored for Epidural applications:

The Sapphire Epidural includes several modes of delivery:

PCEA (patient controlled epidural analgesia) – patient controlled “on-demand doses” with optional basal rate and loading dose.
Intermittent Epidural – scheduled doses and optional basal rate.
PIEB – combines the intermittent scheduled doses with PCEA. Giving priority to the intermittent dose to ensure PIEB delivery and avoidance of dose stacking.

Pump Type: Volumetric, single-channel, touch screen pump, Eitan Medical Flow Control
Multi-Therapy Infusion Modes: Continuous, PCEA, Intermittent and PIEB
Dimensions: (H x W x D) 143 x 96 x 49 mm (5.63 x 3.78 x 1.93 in)
Weight: 418 g (14.7 oz) without battery
Touch Screen: 3.2” color portrait QVGA (64K colors)
Battery: Rechargeable Li-lon battery 7.4V 1960mA/h
Battery Operation Time: ~24 hrs @ 125 ml/hr (with fully charged battery and back-light off)
Degree of Protection Against Ingress of Water and Dust: IP24 splash/dust standard according to IEC 60601-1-11
Power Source: AC adaptor 100 – 240 VAC 50 – 60 Hz
Volume (VTBI): 1 – 9,999 ml with increments of 0.1 mL
Flow Rate: Basal rate: 0.1-25 mL/h with increments of 0.1 mL/h; Bolus / Dose rate: 125 mL/h or 200 mL/h
KVO Rate: Up to 20 mL/h with increments of 0.1 mL/h
Flow Rate Accuracy: ± 2.5% according to IEC 60601-2-24
Disposable Set: Automatic anti-free-flow set
Downstream Occlusion: Up to 17.4 PSI (1.2 Bar)
Prime: Manual or automatic priming (600 or 900 mL/h)
Special Features: PIEB, Yellow colored tubing and screen scheme, Easy to use, customizable, Preprogram (20 pre-set protocols), automatoc lockout, on-screen alarm troubleshooting instructions, hard limits set up, protected programming, event log, custom drug library compatible
