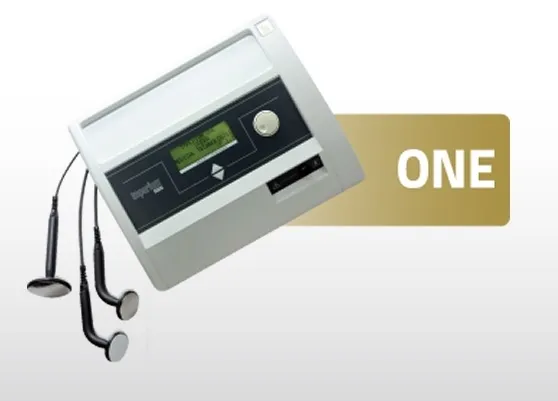

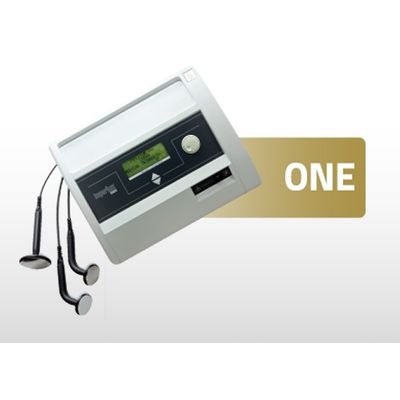

Imperium -Model ONE -Equipment for Tecartherapy
A good reason to spend less. Imperium One is the best compromise between ease of use, portability and power among all the traditional equipment for Tecartherapy. All this can be achieved at a very competitive launch price. Ideal tool for rehabilitation therapists who want to use the traditional methods of diathermy already widely tested for years on the market. Handpieces capacitive and resistive easy to handle, suitable for the diathermic massage and which can be also associated with automatic therapies using fixed adhesive plaques. Operator Free. Imperium One, such as the high-end models Thera and Med, has the HQF (high quality energy flow), developed by the laboratories Brera and that is always friendly, safe and deep on human tissues. So much power has never been so much tamed!
- RF Power 120 W, both in resistive and capacitive;
- Manual Transmission (dynamic) and automatic (Static);
- Straight interchangeable with recognition of handpieces.
- SMART insertion;
- In automatic mode, you can use two pairs of adhesive electrodes;
- Ability to use a return plate to handle resistive (dynamic back plate);
- Handpieces dynamic by forklift pockets with plates
- interchangeable with diameter 55mm and 40mm both in resistive and capacitive
- Weight 9Kg
- Dimensions 45x35x15h cm
RADIO-FREQUENCY
- RF modality Monopolar
- RF frequency 0,5 MHz
- Output Power until 120 W
- Output voltage until 75 Vrms
- Area di trattamento
Treatment area:
RF CAPACITIVE:
- 24cmq electrode 55mm
- 12,5 cm2 electrode 40mm
RF RESISTIVE
- 24 cmq electrode 55mm
- 12,5 cmq electrode 40mm
- Foot pedal
- Parameters and thermal and power levels can be selected using keyboard membrane and controlo knob from the equipment
- Protection from static shock
- Protection against accidental short circuits between the neutral plate and electrode
- Equipment Classification llA
- Classificaiont for electrical safety classification l type BF
