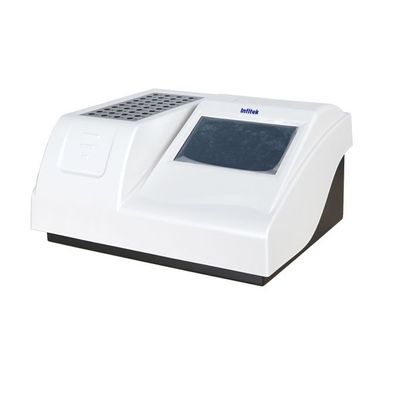

Infitek -Model ESRA-40 -ESR Analyzer
Loading capacity: 40 sample at same time. Measuring time: 30/60 minutes selectable. Throughput: Up to 80 samples per hour. Storage: 4,000 results. Analysis result: Westergren ESR value(mm/hr).
Most popular related searches
in vitro diagnostic medical device
vitro diagnostic medical device
in vitro diagnostic medical
erythrocyte sedimentation rate
diagnostic medical device
erythrocyte sedimentation
medical diagnostic
medical device
in vitro medical
medical diagnostic system
- Large 7 inch touch screen
- Two working methods: 30mins or 60mins
- ESR curve display and print out
- Barcode reader optional, Support LIS connection
Principle
- Field of application: Erythrocyte
- sedimentation rate analysis Measuring principle: Infrared sensor
- Analysis result: Westergren ESR value(mm/hr)
Test speed/Capacity
- Throughput: Up to 80 samples per hour
- Reading channels: 40
- Loading capacity: 40 samples at same time
- Loading pattern: Random
- Storage: 4,000 results
Test range
- Measuring time: 30 minutes or 60 minutes selectable
- Sample interval: 3 minutes
- Measurement range: (1-140) mm/h
- Temperature compensation: Refer to 18C automatically(selectable) Reading resolution: ±0.1mm
- Result resolution: 1mm/1h,1mm/2h
- Blood level range: 50mm~64mm
Output/interface
- Interface: RS-232 serial port
- Print: Internal thermal recorder
- Power/Working condition
- Power supply: AC100-240V,50-60Hz,50W
- Operation conditions: Temperature 5C～40℃ Humidity ≤80%
- Dimension/Weight
- Dimension: 365mm×300mm×180mm(LxWxH)
- Net weight: 8Kg
- Package: 690mm*440mm*340mm, 12.2Kg
