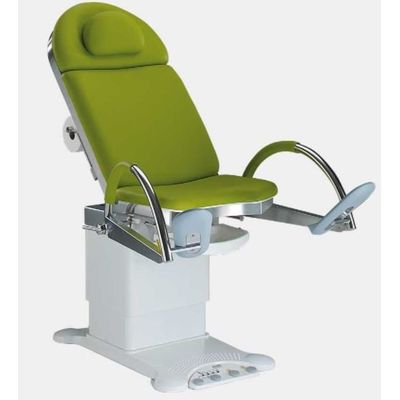

Medifa - Model 400520 - Examination Chair for Gynecology, Urology and Proctology

Electrical functions:

• Height adjustment: 550 - 900 mm
• Height adjustment by means of raising pelvis part: 230 mm
• Adjustment of pelvis section: +20°
• Adjustment of back section: +50°
• Further information:
• Length of seating surface: 1330 mm
• Width of chair: 550 mm
• Maximum permissible overall load: 200 kg
• Weight of chair: ca. 110 kg

Basic configuration

• Aluminium base and column cover powder coated, white (RAL 9010)
• Seat part and back rest frame made of polished stainless steel
• Electric movements controlled by easy operated cable foot switch
• Floor levelling screws for secure standing
• Upholstery with ergonomic form, 50 mm thickness
• Head and back upholstery prepared for neck upholstery with magnetic fixation
• Plastic covered backsides of upholstery parts
• Paper roll holder for paper rolls (up to 500 mm) at back rest
• Paper unreelable over back rest and seat part, or just over seat part
• Mounting device for side rails (25 x 10 mm), hand grips as well as a fixation device for leg holder system acc. to Goepel
• Extendable, inclinable, detachable white plastic basin
• Safe working load: 200 kg
• Weight of the chair: approx. 110 kg
• Floor space required: 860 x 550 mm
• Power supply: 110/230 V / 50-60Hz , incl. 3 m cable
