SMP - Model ED20 - Examination Light (LED Type)

SHARE
SMP’s innovative SMP-ED20 utilizes the latest LED technology. It provides a variety of healthcare facilities with clear, natural lighting, true color rendering, energy efficient and ergonomic integrity. The SMP-ED20 offers seven powerful LED’s which work in tandem to provide 50,000 lux, illuminating the exam area with clear, natural color rendering for a variety of examination procedures. The color temperature of the light can be modified using different combinations of LED’s which permit distinguishing the most subtle of color tones and characteristics in skin tissue with greater detail. In addition, five dimming levels assist in the comfort of both the patient and caregiver.
Most popular related searches
medical light
skin tissue
examination light
examination procedure
articulated arm
post-operative
healthcare facility
led examination light
skin type
exam light
  • 7 Powerful LEDs deliver 40,000 lux at 0.5 meter
  • Colour Rendering Index >93 for true colour light for exams
  • Comfortable 4400K color temperature (4400K, 3800K, 3300K with SMP-ED20-3P) with 3 different shades
  • Newly designed spring-balanced arm system for precise positioning
  • Converter ergonomically integrated inside arm
  • High-energy ef?ciency and maintenance-free operation
  • Sealed construction keeps dust, liquids, etc from permeating interior

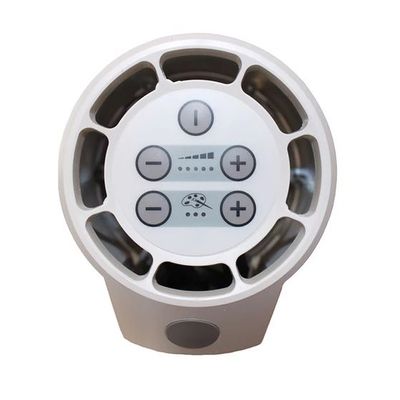

  • Easy access of dimming & controls on the lamp head
  • A variety mounting options: ceiling mount, wall mount, rail mount (?ts most rail systems), table clamp and ?oorstand
  • 3 Color Shades

3300K (warm white) Ideal for different types of skin examinations 3800K (neutral white) Ideal for general examinations 4400K (cold white) Ideal for the recognition of different vessels for post operative treatment and small interventions

  • 40,000 lux / 0.5m LED
  • 16 mm spigot

For adaptation to rail systems, mobile stands, wall bracket

  • Spring balance arm system
  • Integrated converter
Fitted with: 1 X LED Module


Luminous Power: 40,000 Lux / 0.5 m (19.7”)

Illuminance field 0.5M: ø7.1 inches (18 cm)

CRI: ≥ 93

Color temperature: 1P = 4400K, 3P = 4400K / 3800K / 3300K

Work equipment: Electronic Converter

Connected load: 120V; 50/60 Hz

Main lead: 1.8m (5.9ft)
Hospital Grade Plug

Luminaire body: polycarbonate (PC)

Weight (NET): approx. 1.4 kg (3lbs)

Power of consumption: 1P = 13W, 3P = 18W

Usage: Rocker switch (I/0) at the arm, Keypad at luminaire head

Balance of articulation joints: Gooseneck=Friction Articulating Arm=Spring

Class protections: II

Norms: EN 60601-1, EN 60601-2-41

Safety features: 1P = Switchable, Maintenance free, 3P = 3 Color Shades, 5 Dimming Levels, Maintenance free

Safety: ETL / cETL
