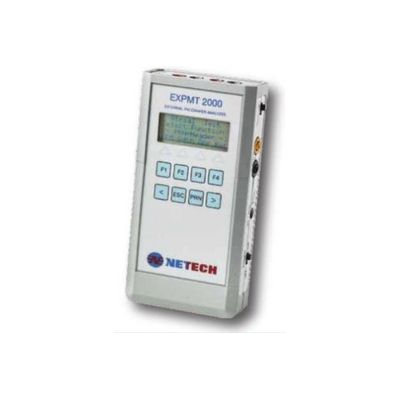

Netech -Model EXPMT 2000 -External Pacemaker Analyzer

• Easy to Use
• Fast and Accurate
• Portable
• Dependable
• Large 4-line LCD Display
• 12 Selectable Test Loads
• 5 ECG Test Leads
• RS-232 Interface
• Print Key
• Accurate Tests
• Demand Sensitivity Tests
• Sensed and Paced Refactory
• 60 / 50 Immunity Tests
• Pulse Energy amp; A-V Interval

Operation of the analyzer is menu driven via eight tactile keys and a large four line LCD display. Test measurements are simultaneously presented on the display. Five ECG snaps are standard along with an RS-232 serial port that allows for printing both a heading and test measurements on a separate printer. Information may also be sent to an external device. The external test load has twelve user-selectable loads from 100 to 1000 Ohms for use with transcutaneous pacers.

Netech`s EXPMT 2000  is menu driven and simple to use. It is compact light weight and cost half of the leading competetions model. It comes with customized hard carying case along with universal interface cables. Optional interface cables for various transcutanious cables are availble. Please check the "Ordering " information for part numbers or contact factory with specific manufactures models.

Transthoracic Pacer

• Test Load: 50 Ohm fixed, 12 selectable steps from 100 to 1000 ohms with EXPMT Load Selector
• Current: 0.1 to 25 mA
• Accuracy: +/- 10%, 1 to 10 mA +/- 5%, 10 to 200 mA
• Pulse Rate: 30 to 800 PPM
• Accuracy: +/- 1% or 2 ppm
• Pulse Width: 0.5 to 80 ms
• Accuracy: +/- 10%, 0.5 to 5 ms +/- 5%, 5 to 25 ms +/- 1%, 25 to 80 ms

Sensed and Paced Refactory

• Period: 25 to 500 ms
• Accuracy: +/- 10 ms
• 0/60 Hz Immunity Test: 0 to 10.6 mV in 0.7 mV steps

Transvenous Pacer

• Test Load: 500 Ohms +/- 1%
• Accuracy: +/- 10%, 0.1 to 10 mA +/- 5%, 1 to 25 mA
• Pulse Rate: 30 to 800 PPM
• Accuracy: +/- 1% or 2 ppm
• Pulse Width: 0.5 to 80 ms
• Accuracy: +/- 10%, 0.5 to 5 ms +/- 5%, 5 to 25 ms +/- 1%, 25 to 80 ms

Demand Sensitivity

• Waveforms: SQR, TRI, and SSQ
• Amplitude: 0 to 100 mV
• Width: 10, 25, 40, 100, and 200 ms
• Pacer Rate: 30 to 120 ppm

A - V Interval

• 0 to 999 ms

General

• Display: 4 line LCD display
• Housing: ABS plastic
• Power Requirements: 9V battery or AC operation
• Size: 7.75" x 4.0" x 1.5" (19.7 x 10.2 x 3.8 cm)
• Weight: 1 lb (0.9 kg)
• Environmental Operating Range: 59° to 95° F (15° to 35° C)
• Storage Temperature: 32° to 131° F (0° to 55° C)
