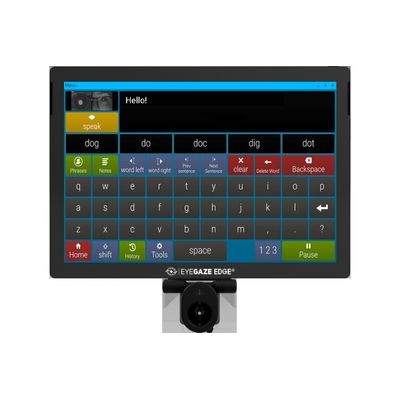

Eyegaze Edge -Eye-Driven Tablet Communication System

• A special eye tracking camera mounted below the Eyegaze Edge screen observes one of the user’s eyes.
• Sophisticated image processing software analyzes the camera’s images 60 times each second and determines where the user is looking on the screen.
• Nothing is attached to the user’s head or body.
• A less than 15 second calibration procedure is required to set up the system for a particular user. The user looks at a small calibration point as it moves around the screen.
• There is no need to recalibrate if the user moves away from the screen and returns later.
• A user operates the system by looking at rectangular “keys” or cells that are displayed on the control screen. To “press” a key, the user looks at the key for a specified period of time.
• The gaze duration required to visually activate a key, typically about ½ second, can be adjusted by the user.
• An array of menu keys and exit keys allow the user to navigate the Eyegaze programs independently.

Encore Camera Specifications:

• Gaze Position Accuracy : <0.45°
• Spatial Resolution : <0.2°
• Sample Rate : 50Hz
• Eye Tracking Mode :
• Monocular/Binocular
• Operating Distance : 40-73cm
• Tracking Range : 17.8 × 11.9 x 7.6cm
• Calibration Mode : 5pt, 9pt, 13pt
• Head Movement Velocity : 50cm/sec
• System Latency : 18ms
• Dimensions (Width x Height X Depth) : 4 x 4.5 x 6cm
• Weight : 4.9oz
• Eyewear Compatibility : Works with majority of glasses and lenses
• Compliance : FDA, CARF, CE (EU)

Prime Camera Specifications

• Gaze Position Accuracy : <0.45°
• Spatial Resolution : <0.1°
• Sample Rate : 60Hz
• Eye Tracking Mode : Monocular
• Operating Distance : 43-83cm
• Tracking Range : 7.6 × 6.4 x 6cm
• Calibration Mode : 5pt, 9pt, 13pt
• Head Movement Velocity : 50cm/sec
• System Latency : 18ms
• Dimensions (Width x Height X Depth) : 8.8 x 3.4 x 13.8cm
• Weight : 6.3oz
• Eyewear Compatibility : Works with majority of glasses and lenses
• Compliance : FDA, CARF, CE (EU)

Technical

• Weight : 1.9 pounds
• Dimensions : 8.2L x 11.7W x 3.5H inches
• Display Size : 12.5" (3:2) LED backlit HD 60Hz Glare Panel with 45% NTSC
• Max Screen Resolution : 2160 × 1440
• Voltage : 19 volts
• Battery Life : 8 hours Manufacturer – Battery life varies based on use and power settings.
• Battery Life with EyeTracker : 1 hour 30min at High Performance (Eye-tracking/Web browsing/music)
• Battery Life with Endurance Pack : 8 hours with endurance pack at High Performance (Eye-tracking/Web browsing/music)
• Operating System : Windows 10 Pro
