Optogama - Model KAUKAS 3 - `Eye-safe` 1,54 µm Wavelength Nanosecond Lasers
FromOptogama UAB

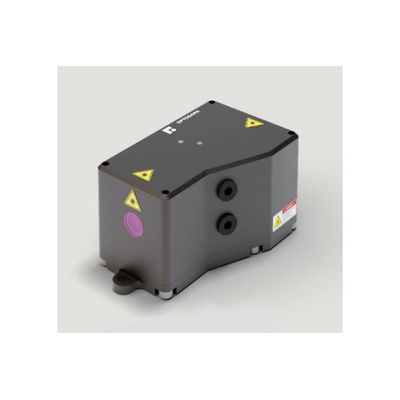

“Eye-safe” 1,54 μm wavelength nanosecond lasers “KAUKAS 3” possess a unique compact design and are available in OEM models for dedicated applications such as LIDAR or laser ranging. This specific “Eye-safe” 1,54 μm wavelength lasers model “KAUKAS 3” delivers up to 3 mJ energy per pulse with a repetition rate of up to 1 Hz.
Most popular related searches
Main Features
- Compact robust design
- High energy per pulse (>3 mJ)
- Wide operating temperature range
- OEM version available
- LIDAR & laser ranging
- LIBS
- Metrology and instrumentation
- Research
- Wavelength : 1534 nm
- Wavelength tolerance : ±1 nm
- Repetition rate : 0,5-1 Hz
- Pulse energy : >3 mJ
- Energy stability : <2 %
- Pulse duration : <12 ns
- Polarization contrast : >80:1
- Beam diameter at exit window : <1 mm
- Beam quality : M2 < 2
- Beam profile : TEM00
