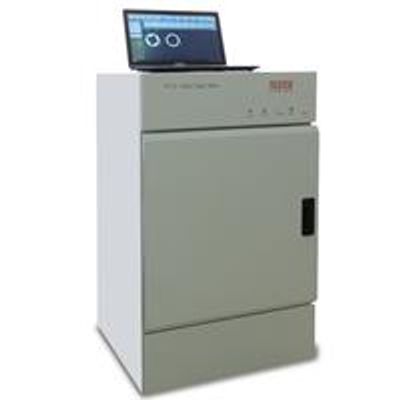

Testex - Model TF118 - Fabric Drape Tester

Weight
160 kg

Power
220 V 50 Hz 120 W

Dimensions
Length: 480 mm  Width: 540 mm Height: 870 mm

Standards
BS EN 9073 BS 5058 ERT 90-1 AFNOR G07-109
UNI 8279 FZ/T 01045

Fabric Drape Tester, to measure and calculate the co-efficiency of drape of fabrics using image processing technology. It can be used to test the drape property of all kinds of fabrics.

Equipped with CCD imaging system, dynamic and static images processing, it offers a variety of charts and data statistics, analysis, storage and output. Specimens in all colors can be tested without changing background color.

Note: A customized PC is needed for this instrument.

• Working pattern computer controlled, CCD imaging, full-automatic processing of images and computer data.
• Imaging sensor CCD
• Drape coefficient range 0 ~ 100%
• Accuracy ≤ +/-1.5%
• Diameter of specimen disc Φ120mm (optional Φ180mm)
• Dimension of specimen Φ 240mm (optional Φ 300mm, Φ 360mm)
• Light source
• Rotation speed 10 ~ 120 rpm
