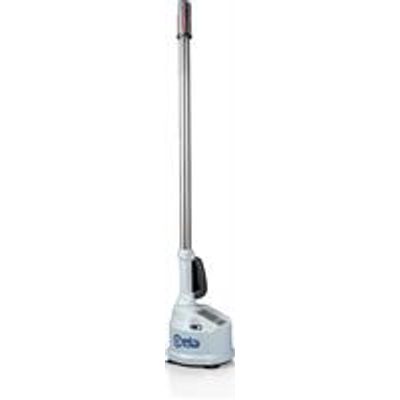

The illegal use of cell phones is a growing and dangerous problem in correctional institutions worldwide. These devices are a significant threat to prison security and circumvent the monitoring processes in prisons, while allowing inmates to commit new crimes both inside and outside the facility. The MSD was specifically designed to detect all cell phones and ferrous contraband concealed on the person or in body cavities (including key fob cell phones, smart phones, radio transceivers, etc.) quickly and easily. The one-piece design allows the MSD to be easily transported and operational in 10 seconds.
- Detection of all cell phones and other ferrous contraband concealed on the person or in body cavities (including keyfob cell phones, smart phones, radio transceivers, etc.)
- Constant Sensitivity across the detection area in pass-through operations
- Multi-Zone targeting indication identifies location of contraband on the body
- Covert operation through use of BT wireless communication headset
- Fully weather proof for outdoor use (IP65 certified)
- 26 hours continuous operation
- Unmatched detection in all environments without adjustment
- Extremely durable design
- No assembly required: set-up in less than 10 seconds
Carrying case for personal transport and storage
- Heavy-duty lightweight carry system
- Custom fit to the MSD shape
- Dedicated pocket for accessories
- Space–saving
- Included parts:
- MSD Ferromagnetic Detector unit
- Test sample
- External AC/DC battery charger adapter
- Carrying case
Even though the MSD is typically used as a stand-alone single pole, the new MSD Pass-through configuration with EVO option defines now the possibility to operate on a transit width up to 51" with constant detection sensitivity from pole to pole. Moreover, this new uniform solution allows the reliable screening of in-mates transiting through a corridor, the surveillance of large transit openings and an extremely accurate investigation of mattresses and other objects that could hide contraband.
Controls and indicators
- ON/OFF push-button
- 4-key keypad, for programming and status readout
- Security: Programming Access protected by User and Super User password
- Power indicator: White lamp
- Alarm indicator
- Green light: normal operation, no detection
- Red light: target detection over the alarm threshold / Fault indication
- Blue light: connecting BT wireless communication device in progress
- Graphic display: Messages during use, programming and self-diagnosis alerts
- Multi-color status indicator
- Green light: normal operation, no detection
- Yellow light: proportional target detection under the alarm threshold
- Red light: Continuous light: target detection over the alarm threshold; 5 different zone indication; Blinking light: fault
- Blue light: connecting BT wireless communication device in progress
- Alarm Sounder
- Alarm indication for target over the alarm threshold, with fixed or proportional pitch
- Warning and alarm indications adjustable in continuous/pulsed tone and volume
- Battery low: double beep
- Self-diagnosis alert: intermittent tone
- BT wireless communication headset
- Warning indication for target under the alarm threshold, with fixed or proportional pitch
- Alarm indication for target over the alarm threshold, with fixed or proportional pitch
- Warning and alarm indications adjustable in continuous/pulsed tone and volume
- Battery low: double beep
- Diagnosis: intermittent tone
Power supply
- AC/DC external power adapter: 100 … 240 V~ , 47…63Hz, 40W
- Embedded rechargeable battery
- 16h typical / 17h max. of continuous operation with 3 h battery charge
- 24h typical / 26h max. of continuous operation with 4.5 h battery charge
Detector environmental conditions
- Working temperature: 14 to 149°F
- Storage temperature: -35 to 158°F
- Relative humidity: 0 to 95%, non-condensing
Weight
- MSD: 21 lbs
- AC/DC adapter: 1.6 lbs
- BT wireless communication kit: 0.5 lbs (includes battery charger)
- Carrying case: 1.5 lbs
- Installation kit: 0.6 lbs
MSD dimensions
- Height: 75”; Width: 13”
Shipping information
- Dimensions (WxDxH) 16” x 79” x 19”
- Weight 53 lbs
Detector degree of protection
- Fully weather proof for outdoor use (IP65)
Available accessories
- Additional BT wireless communication headset: ordering code 70628 (one BT wireless communication headset included)
- MSD-RRU Remote Relay Unit: ordering code MSD-RRU
- Wall mounting kit: ordering code 67258
Certification and compliance
- Non-emitting device: safe for use for pace-makers and other medical implants
- Compliant and certified to the applicable electromagnetic Standards on Human Exposure and pacemaker safety
- Compliant with and certified to the applicable International Standards for electrical safety and EMC
