Fiber Coupled Violet LED
FromPrizmatix Ltd.

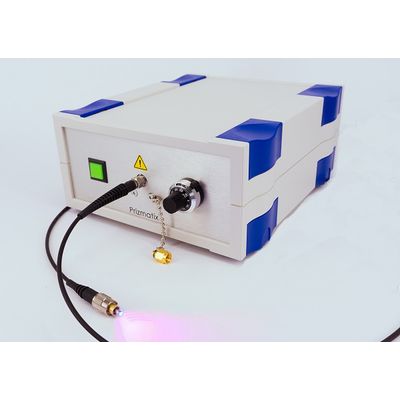

The Prizmatix Optogenetics-LED-Violet module is specially designed to provide high power Violet light (~405nm) to activate various Opsins with Violet activation spectrum in Optogenetics experiments with freely moving mammals. This LED source provides powerful light irradiance of >380 mW/mm² at fiber implant tip following all fiber-optic connections including Rotary Joint. Prizmatix unique Optogenetics-LED design enables optional bilateral activation with a single LED and standard rotary joint for significant cost saving and without compromising power at fiber optic canula tip.
Most popular related searches
- High Power density (>380 mW/mm²) at cannula`s fiber tip following all connections
- Unique large LED enables bilateral illumination with single LED and rotary joint for significant cost saving and without compromising power at implant tip.
- Extremely low torque LED-compatible rotary joint suitable for even the smallest animals
- Precisely adjustable power by 10 turns potentiometer
- TTL and Analog Inputs are Opto-Isolated to eliminate ground-loops
- Analog input (0-5V) for power control
- Instant warm up time
Prizmatix offers a wide range of standard and customized items comprising the Optogenetics Toolbox. The most useful items for optogenetics experiments in free-moving animals are:
