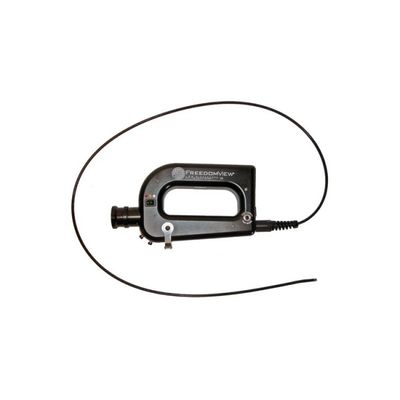

FreedomView - Model LED 4MM - Fiberscope Kits
From Flexible Fiberscopes
4mm Diameter Two – Way Articulating Fiberscope with internal LED Light Source.
-
Most popular related searches
Technical Specifications
- .155 inch (4.0mm) shaft diameter
- Two way – 120° up/down articulation
- Tungsten braid shaft covering
- Shaft Immersible in Water and Fuel
- Non-Conductive
- Electrostatic Discharge (ESD) Common Point Ground for added safety
#0057321 - FV420 FreedomView LED Fiberscope x 20″ (51cm) working length
#0057322 – FV440 FreedomView LED Fiberscope x 40″ (102cm) working length
Aluminum Handle with:
- Internal LED Lighting System with Intensity Control
- 3 Watt White LED – 5500K Color Temperature
- Internal Rechargeable Lithium Ion Battery
- Battery Charger Level Indicator
- ESD Common Ground Port
- On/Off Switch and Adjustable Level Switches
- A/C plug port option
- Internal Pulse Width Modulating (PWM) Circuit
- FreedomView LED Fiberscope Kit Includes:
- Fiberscope
- (2) Lithium Ion Batteries
- Battery Charger
- Carrying Case
- Operators Manual
- AC Power Cord
Product Details
This flexible fiber scopes offer high resolution optics, with stainless steel braided insertion probes, which are tough and flexible. The 90 degree two-way tip articulation allows inspections in tight areas. The probes are protected by a stainless steel braided sheath which are water, oil, and gasoline resistant. Ideal for insertion into multiple-bend pipes such as aviation engine guide tubes. The fiberscope insertion tube flexibility changes continuously.
The universal focusing eyepiece easily connects to c-mount video cameras through a simple coupler, with a variable focus.
The fiberscope light guide is approximately 1 meter long (can be customized for longer length) to allow ample room to work with from the light source. The standard receiver on the light guide is ACMI and there are various adapters available to support your specific light source. The fiberscope light guide can be used with halogen, metal halide or LED light sources. Please contact us if you have a specific UV application.
The fiberscope is packaged in a custom fitted standard duty storage case. The purpose of the fiberscope case is to protect the unit while not in use form damage, heat, cold temperatures and sunlight. Optional fiberscope heavy duty storage cases and fiberscope shipping cases are available.
Ask about our fiberscope repair exchange program to help eliminate your fiberscope inspection downtime.
