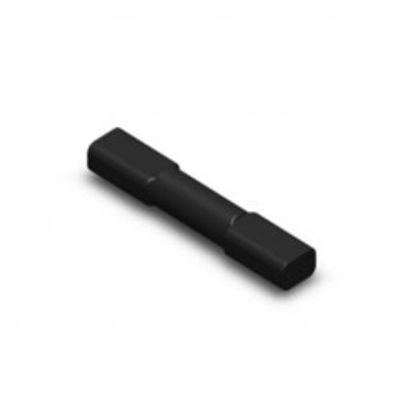

BiomarC - Model EX - Fiducial Marker
BiomarC EX provides excellent visibility for both kV and MV imaging. This marker is manufactured with a slightly denser core material allowing for enhanced daily images. This marker can be especially helpful on larger patients or patients with bony or implant interference with treatment planning.
Carbon Medical Technologies (CMT) manufactures various fiducial markers to meet the specific needs of our customers to enhance accuracy and efficiency during radiation therapy. Our unique pyrolytic carbon coating technology provides exceptional biocompatibility for permanent medical implants.
The unique carbon coating and composition of the core materials is compatible with all forms of radiation therapy and provides maximum versality for modalities and treatments such as IGRT/IMRT, Proton Therapy, CT, MRI and portal imaging. Areas marked with BiomarC fiducial markers provide clear, visual landmarks with no uncertainty between healthy tissue and the target area.
BiomarC Fiducial Markers Characteristics:
- Lesion localization
- Marking surgical sites or margin areas
- Confirmation of tumor shrinkage and final excision of the cancerous tissue
- Marking tumors at the time of diagnosis
Carbon Medical Technologies strength lies in the ability to customize product design to meet the needs of a wide range of fiducial marker applications.
Reimbursement is available. Contact us for more information or contact your local payer for specific coding and coverage guidelines.
- Exceptional material combination reduces artifact
- Excellent visibility allowing for tighter margins and increased dosing
- Extraordinary biocompatibility with the pyrolytic carbon outer coating
- Available in a 0.9x5mm and 1x5mm configuration
US PRODUCT CODE
040140 – 1x5mm marker 18g x 20cm Needle
040142 – 1x5mm marker Individually Pouched
PATIENT CONTACT MATERIAL
Carbon
VISIBILITY
kV & MV X-ray
CT
CBCT
Ultrasound
MRI
ATTRIBUTES
BiomarC EX provides excellent visibility on both kV and MV imaging systems. This precisely sized marker is ideal for localization software systems that rely on soft tissue tracking. BiomarC EX is manufactured with a higher density material for situations where a complex fiducial contrast is preferable.
- Ideal for Photon therapy
- Versatile, visible on both kV and MV systems
- Visible in hard to image tissue like prostate and liver
- Good for Cyberknife – high density for consistent strong signal during treatment
- Excellent biocompatibility
