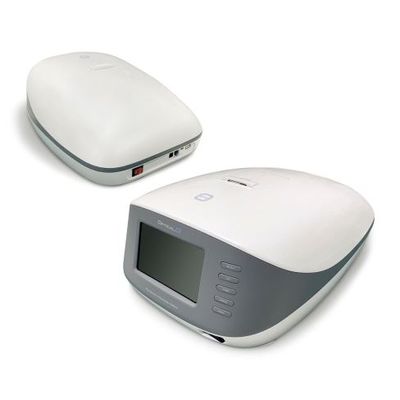

Optical Q -Fluorescence Immunoassay Diagnostic Device

SHARE

Optical Q™ is a cutting edge in-vitro diagnostics fluorescence immunoassay analyzer (FIA) that accurately measures the concentration of analytes contained in blood, serum, plasma, and other samples. Results are generated within a prompt 15-minute time frame with CV`s ranging from 5%~10%. In contrast to standard FIA analyzers that use gold nano-particles, Optical Q utilizes advanced fluorescence chemistry and incorporates world class lens technology to more accurately quantify the concentration - or severity - of each analyte. In addition, Optical Q features a wide variety of diagnostic markers - many of which are developed in-house - that covers health categories including but not limited to inflammation, infection, diabetes, vitamin D deficiency, thyroids, and more. Our capacity to develop our device and antibodies in-house enables optimized performance against competitors, continued expansion of our test menu, and modification of tests based on client needs.

Most popular related searches

From private physician offices to larger hospital laboratories and emergency departments, Optical Q™`s high performance, objectivity, and quality control make Optical Q the perfect solution for those looking to improve their rapid testing algorithm.

Optical Q is truly a rapid one-stop diagnostic solution.

Performance

  • Instant results within 3~15 minutes
  • High CV performance <10%
  • 27 test parameters and expanding

Convenience

  • 3 step process: dilute, drop, analyze
  • Portable weight and size
  • Modifiable tests

Technology

  • Top optical lens resolution F/N 1
  • RFID for test and lot identification
  • Internal printer for results

  • Test Method: Quantitative Fluorescence Immunoassay
  • CV: <10%
  • Dimensions: 357 mm (L) x 284 mm (W) x 156 mm (H)
  • Weight: 1.5 kg
  • Power Supply: DC 12V/5A, AC/DC Adaptor
  • Data Output: LCD / Internal printer
  • Memory: 99 patient results
  • Interface: RS422 (RJ45) / mini 5pin / USB
  • Display LCD: 5”Mono LCD
  • Working Condition: Temperature: 15-30°C / Humidity: 10-70%
  • Cat No.: OB001
  • Description: Optical Q Analyzer
  • Packing Size: 2 Unit/Carton
  • Storage Condition: Room Temperature
