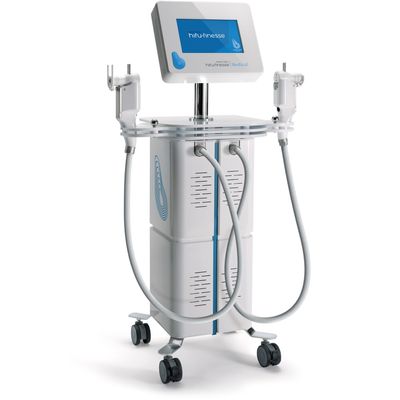

Biotec - Model Hifu-Finesse - Focused Ultrasound Device
The scientific basis from which the Finesse HIFU device is derived is the HIFU technology (high intensity focused ultrasound) used for years in the treatment of tumours, which uses the thermal energy created at the focal distance of an ultrasonic wave transducer. Through this innovative therapeutic approach, it is possible to stimulate the natural cellular mechanism of tissue repair and regeneration. The physician has the possibility to customize the treatment through the choice of the most suitable transducer for the depth to be reached, going to calibrate appropriately, power and mode of ultrasound emission, according to the characteristics of the patient, the area to be treated and the desired result.
The medical procedure with high intensity focused ultrasound has proven to be effective and safe for the treatment of hyperhidrosis and osmidrosis.
Focused ultrasound can treat both the eccrine glands, responsible for excessive sweating, and the apocrine glands, responsible for bad smell. The treatment is carried out quickly and painlessly, without the use of toxins, without side effects, obtaining an immediate improvement with lasting results.
- POWER SUPPLY VOLTAGE: 230 Vac 50/60 Hz
- MAXIMUM POWER: 200 VA
- SAFETY CLASS AND TYPE OF PART APPLIED: I BF
- FUSES: 2x F2A – 250V
- DIMENSIONS: 700(W) x 500(D) x 1300(H) mm
- WEIGHT: 45 kg
- ULTRASONIC PULSE DURATION: 100ms
- LINEAR SCAN: 15 ÷ 40 mm
- EMISSION STEPS: 1 ÷ 5 mm
- ACTIVATION: “Ready” button and Button
Ultrasonic transducer with exclusive “Centerless” technology for the facial handpiece.
The operational stability of the transducer is safeguarded during the entire treatment. Active cooling helps to increase the emission power of the piezoelectric component; indeed, it is known that an excessive increase in temperature reduces the quality factor of the piezoelectric component during the operating process.
Cooling of the ultrasonic emitter through a hydraulic circuit that allows water to circulate and actively cool the transducer.
Guarantees accurate intensity of the focal peak, with reduced possibility of side effects and better results. In addition, the treatment is much less painful when compared to full transducers.
The lifespan of the transducer is extended and guaranteed up to 20,000 scan lines, unlike common transducers that have a very limited functioning lifespan.
Exposure to the thermal stimulus / reduced pulse duration, starting from 10ms. This feature further reduces heat diffusion axially and ensures greater confinement at the focal point.
- FOCALIZATION DEPTH: 4.5mm
- MAXIMUM POWER: 10W
- EMISSION HEAD DIAMETER: 15mm
- FREQUENCY: 4 mHz
