Ram Environnement

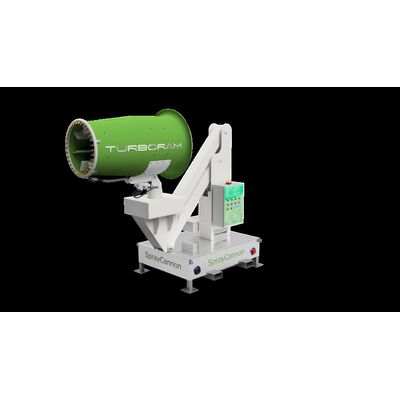

Turboram - Model TRD 60-BM - Fogging Gun
The RAM Environnement TURBORAM TRD 60-BM fogging gun is the only one in our range to be equipped with an articulated arm allowing the gun to be positioned at a height of almost 6 m. Its frame with forks simplifies its mobility.
Most popular related searches
APPLICATION: OUTDOOR
- Range without wind (m): 60
- Covered area (m²): 10.000
- No. of nozzles: 34
- Water consumption (l/hrs): 500 to 3.500 with standard 4kW pump
- Fan power (kW): 7.5
- Pump power (kW): 4
- Operating pressure (bar): 20 to 25
- Wobbling (°): 320
- Tilt (°): -15 to +60
- Electrical connection: Tri 400 V – 32 A
- 5-pin male plug: 32 A
- Water connection: 2″ Guillemin fitting (Fireman’s connection)
- Pression d’alimentation (bar): 1 to 9
- Built-in filter (microns): 150
- Dimensions (mm) arm folded in transport position: 2.375 x 1.975 x 2.730
- Dimensions (mm) arm folded in operating position: 2.430 x 1.910 x 2730
- Height (mm) arm unfolded max.: 5.750
- Weight (kg): 915
- Options available:
- 5.5 kW pump: 4,500 l/h
- Rubber crawler
- 33 kVA generator
- Lighting of the working area by LED spotlight
- Radio control
