Calmus -Model FIS360C -Form-Insert-Seal Monoblock Case Packer Cartoning Machine for Stand-Up Pouches

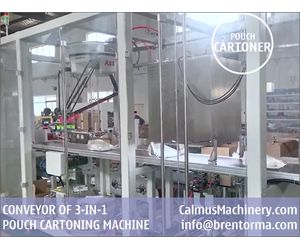

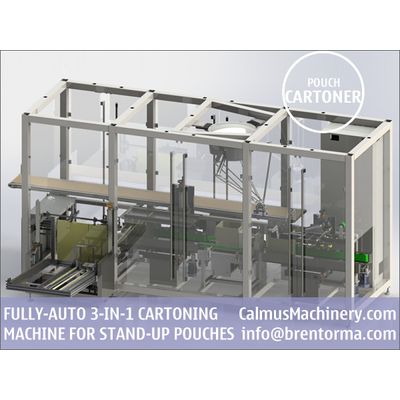

Fully-automatic Form-Insert-Seal 3-in-1 Case Packer | Monoblock Cartoning Machine for Stand-Up Pouches This is a cartoning machine for stand-up pouches. A delta robot (ABB IRB 360 FlexPicker) is employed for picking and inserting pouches in cartons. Carton forming, pouch inserting and carton sealing 3-in-1. This monoblock case packer is easy to be installed and an ideal cartoning machine for the COVID-19 period as it is the diffcult time to have technicians for installation from suppliers abroad.Most popular related searches
Features:
1. Form-insert-seal 3-in-1, with a smaller footprint.
2. Easy to install.
3. System pauses and alert if cartons or tapes are empty.
Specifications:
Capacity: 450 cartons, 2700 x 1 litre pouches/hour
Compressed air: 0.6-0.8MPa
Max tape roll diameter: 300mm
System weight: 6,000kg
Power supply: 3 phases, customized voltage
System dimensions: 5,300*2,800*2,800mm.
Power consumption: 5kW
